THOMSON Electrak

THOMSON Electrak® HD Linear Actuators

工作溫度ºC : -40度~+70度

Electrak HD Specifications:

Performance Specifications

HDxx-B017

HDxx-B026

HDxx-B045

HDxx-B068

HDxx-B100

HDxx-B160

Input Voltages
(VDC)

12VDC
(tolerance: 9-16)
24VDC
(tolerance: 18-32)
48VDC
(tolerance: 36-64)

12VDC
(tolerance: 9-16)
24VDC
(tolerance: 18-32)
48VDC
(tolerance: 36-64)

12VDC
(tolerance: 9-16)
24VDC
(tolerance: 18-32)
48VDC
(tolerance: 36-64)

12VDC
(tolerance: 9-16)
24VDC
(tolerance: 18-32)
48VDC
(tolerance: 36-64)

12VDC
(tolerance: 9-16)
24VDC
(tolerance: 18-32)
48VDC
(tolerance: 36-64)

12VDC
(tolerance: 9-16)
24VDC
(tolerance: 18-32)
48VDC
(tolerance: 36-64)

Min/Max Stroke
Length: mm

100 / 1000
@ 50 ordering increments

100  / 1000
@ 50 ordering increments

100  / 1000
@ 50 ordering increments

100  / 1000
@ 50 ordering increments

100  / 1000
@ 50 ordering increments

100  / 500
@ 50 ordering increments

Max Dynamic Load:
N (lbs)

1700 (382)

2600 (585)

4500 (1012)

6800 (1529)

10000 (2248)

16000 (3597)

Max Static Load:
kN (lbs)

18 (4050)

18 (4050)

18 (4050)

18 (4050)

18 (4050)

18 (4050)

Max No-Load Speed: mm/s (in/s)

71 (2.8)

40 (1.6)

24 (0.94)

18 (0.71)

11 (0.43)

7 (0.28)

Max Full-Load Speed: mm/s (in/s)

58 (2.28)

32 (1.3)

19 (0.75)

14 (0.55)

9 (0.35)

5 (0.20)

Current Draw @
no load / max load

@12V - 3 / 18
@24V - 1.5 / 9
@48V - 0.75 / 5

@12V - 3 / 18
@24V - 1.5 / 9
@48V - 0.75 / 5

@12V - 3 / 18
@24V - 1.5 / 9
@48V - 0.75 / 5

@12V - 3 / 20
@24V - 1.5 / 10
@48V - 0.75 / 5

@12V - 3 / 18
@24V - 1.5 / 9
@48V - 0.75 / 5

@12V - 3 / 20
@24V - 1.5 / 10
@48V - 0.75 / 5

Full load duty cycle
@ 25 ºC (77 ºF)

25%

25%

25%

25%

25%

15%

Screw / Nut Type

Ball / load lock ball nut

Ball / load lock ball nut

Ball / load lock ball nut

Ball / load lock ball nut

Ball / load lock ball nut

Ball / load lock ball nut

Operating temperature: ºC (ºF)

-40 to +70
(-40 to +158)

-40 to +70
(-40 to +158)

-40 to +70
(-40 to +158)

-40 to +70
(-40 to +158)

-40 to +70
(-40 to +158)

-40 to +70
(-40 to +158)

Protection Class:
static / dynamic

IP67, IP69K / IP66

IP67, IP69K / IP66

IP67, IP69K / IP66

IP67, IP69K / IP66

IP67, IP69K / IP66

IP67, IP69K / IP66

Restraining Torque:
Nm (lbs)

0

0

0

0

0

0

End Play (Max):
mm (in)

1.2 (0.047)

1.2 (0.047)

1.2 (0.047)

1.2 (0.047)

1.2 (0.047)

1.2 (0.047)

Salt Spray Resistance (hours)

500

500

500

500

500

500

Actuator Weight
(kg)

6.5 @ 100 mm
11.0 @ 1000 mm

6.5 @ 100 mm
12.2 @ 1000 mm

6.5 @ 100 mm
12.2 @ 1000 mm

6.5 @ 100 mm
12.2 @ 1000 mm

6.7 @ 100 mm
12.4 @ 1000 mm

7 @ 100 mm
9.4 @ 500 mm



PDF下載連結

原廠連結: https://www.thomsonlinear.com/en/products/linear-actuators/electrak-hd

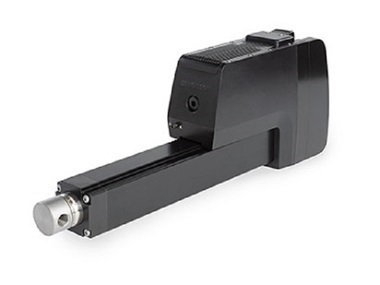

THOMSON Electrak® XD Linear Actuators

工作溫度ºC : -40度~+85度

Electrak XD Specifications:

Performance Specifications

B055

B080

B160

B200

B250

Input Voltages
(VDC)

24 Vdc
tolerance (18-32)

48 Vdc
tolerance (36-60)

24 Vdc
tolerance (18-32)

48 Vdc
tolerance (36-60)

24 Vdc
tolerance (18-32)

48 Vdc
tolerance (36-60)

24 Vdc
tolerance (18-32)

48 Vdc
tolerance (36-60)

24 Vdc
tolerance (18-32)

48 Vdc
tolerance (36-60)

Min/Max Stroke Length: mm

1200

1200

1000

800

650

Max Dynamic Load: N (lbs)

5500 (1236)

8000 (1798)

16000 (3596)

20000 (4496)

25000 (5620)

Max Static Load: kN (lbs)

11.000 (2472)

16.000 (3596)

32.000 (7193)

32.000 (7193)

32.000 (7193)

Max No-Load Speed:
mm/s (in/s)

24V 65 (2.56)

48V 75 (2.95)

24V 50 (1.97)

48V 50 (1.97)

24V 25 (0.98)

48V 25 (0.98)

24V 16 (0.63)

48V 20 (0.79)

24V 16 (0.63)

48V 16 (0.63)

Max Full-Load Speed:
mm/s (in/s)

24V 65 (2.56)

48V 75 (2.95)

24V 50 (1.97)

48V 50 (1.97)

24V 25 (0.98)

48V 25 (0.98)

24V 16 (0.63)

48V 20 (0.79)

24V 16 (0.63)

48V 16 (0.63)

Current Draw @
no load / max load

24VDC/30A, 48VDC/15A

24VDC/30A, 48VDC/15A

24VDC/30A, 48VDC/15A

24VDC/30A, 48VDC/15A

24VDC/30A, 48VDC/15A

Full load duty cycle
@ 25 ºC (77 ºF)

45%

45%

45%

45%

45%

Screw / Nut Type

Ball

Ball

Ball

Ball

Ball

Operating temperature: ºC (ºF)

-40 to 85

(-40 to 185)

-40 to 85

(-40 to 185)

-40 to 85

(-40 to 185)

-40 to 85

(-40 to 185)

-40 to 85

(-40 to 185)

Protection Class:
static / dynamic

IP66, IP67, IP69K / IP66

IP66, IP67, IP69K / IP66

IP66, IP67, IP69K / IP66

IP66, IP67, IP69K / IP66

IP66, IP67, IP69K / IP66

Restraining Torque: Nm (lbs)

0

0

0

0

0

End Play (Max): mm(in)

1.200 (0.047)

1.200 (0.047)

1.200 (0.047)

1.200 (0.047)

1.200 (0.047)

Salt Spray Resistance (hours)

500

500

500

500

500

Actuator Weight kg

11.9 @ 100 mm

23.4 @ 1200 mm

11.9 @ 100 mm

23.4 @ 1200 mm

11.9 @ 100 mm

21.3 @ 1000 mm

11.9 @ 100 mm

19.2 @ 800 mm

11.9 @ 100 mm

17.7 @ 650 mm



PDF下載連結

原廠連結: https://www.thomsonlinear.com/en/products/linear-actuators/electrak-xd





THOMSON Electrak® LL Linear Actuators

工作溫度ºC : -40度~+85度

抗紫外線表面處理
高腐蝕防護

Electrak LL Specifications:

Performance Specifications

LLxx-B040

LLxxB060

Input Voltages
(VDC)

24VDC
(tolerance: 16.8-32)

24VDC
(tolerance: 16.8-32)

Min/Max Stroke Length: mm

100 / 500
@ 50 ordering increments

100 / 500
@ 50 ordering increments

Max Dynamic Load: N (lbs)

4000 (899)

6000 (1349)

Max Static Load: kN (lbs)

18 (4050)

18 (4050)

Max No-Load Speed:
mm/s (in/s)

30 (1.18)

15 (0.59)

Max Full-Load Speed:
mm/s (in/s)

30 (1.18)

15 (0.59)

Current Draw @
no load / max load

@24V - 2 / 10.5

@24V - 2 / 8.5

Full load duty cycle
@ 25 ºC (77 ºF)

35%

35%

Screw / Nut Type

Ball / load lock ball nut

Ball / load lock ball nut

Operating temperature: ºC (ºF)

-40 to +85
(-40 to +185)

-40 to +85
(-40 to +185)

Protection Class:
static / dynamic

IP66, IP69K / IP66

IP66, IP69K / IP66

Restraining Torque: Nm (lbs)

0

0

End Play (Max): mm(in)

1.2 (0.047)

1.2 (0.047)

Salt Spray Resistance (hours)

500

500

Actuator Weight (kg)

6.8 @ 100 mm
9.6 @ 500 mm

6.8 @ 100 mm
9.6 @ 500 mm



PDF下載連結

原廠連結: https://www.thomsonlinear.com/en/products/linear-actuators/electrak-ll
