Karl Klein 鼓風機

Karl Klein鼓風機

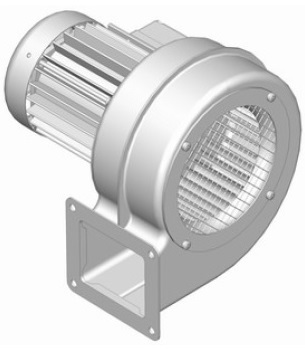

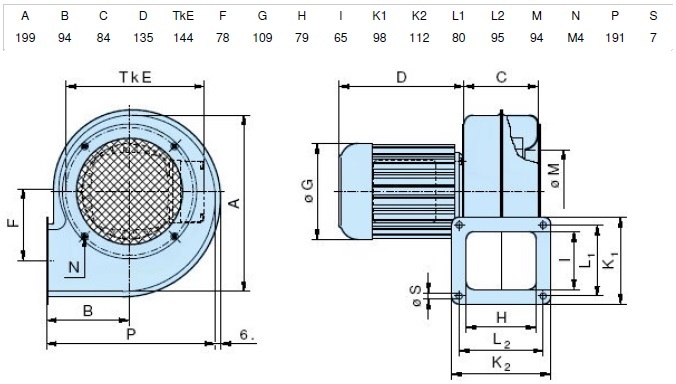

Type DNG WS 3-6
 50 Hz
 60 Hz

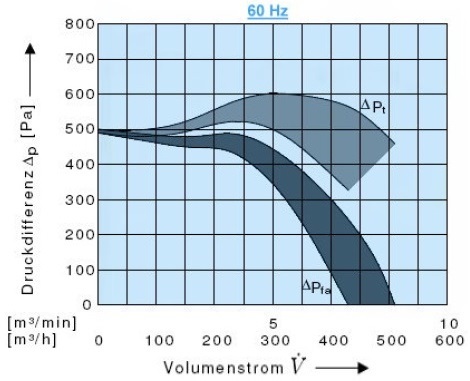

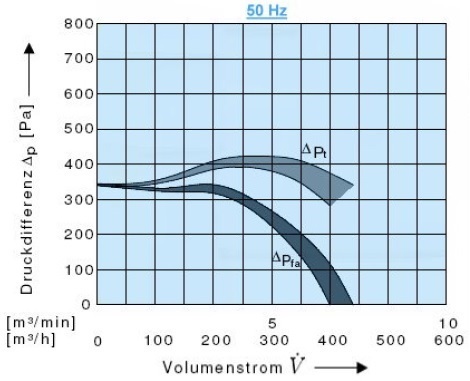

performance of air max. 400-440 430-510 m³/h
pressure Pfa max. 340-345 490-500 Pa
power out 0,120 0,150 kW
voltage
Δ/ Y 202-306 350-530
202-306 350-530 V
current 0,55/0,32 0,51/0,29 A
speed 2785 3310 min/ ¯ ¹
frequency 50 60 Hz
protection mode IP 54 54
noise level 65 69 dB (A)
weight ca. 4,0 4,0 kg










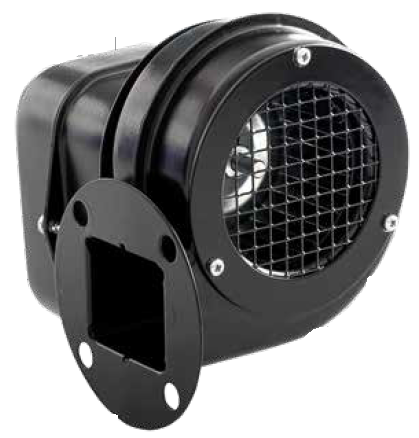

Fans with split-phase motors

The 1st product range of Karl Klein in 1965 - and still reliable today.

 Application areas

·Extruders

·Heating boiler construction

·Switch cabinet construction

 Fan types

·ENG 1-2,8 B

·ENG 1-2,6 B

·ENG 1-1,6 B

·ENG 1-1,2 B

·ENG 1-0,8

·ENG 1-0,65



Karl Klein 鼓風機

 Karl Klein 一系列完整的產品,來自德國的工藝;從個別零組件之計算、設計、繪圖、

 製造到組裝一氣呵成,針對各式各樣的運用,快速地回應以滿足客戶的需求。



分極式馬達

風量可達 150 m3/h

擠出機、加熱系統、開關櫃

外轉子

風量可達 500 m3/h

結構緊湊、省空間

儀器、通風系統、緊湊型單元

低壓(後彎曲葉片)

風量可達7,350 m3/h

熱風溫度可達 350℃

除塵、鐵路、飲水機、表面處理、

磨機、乾燥、烤箱、包裝

低壓(連軸傳動型)

風量可達72,000 m3/h

熱風溫度可達600℃

除塵、鐵路、飲水機、

表面處理、磨機、乾燥、

烤箱、包裝

低壓(前彎曲葉片,可雙扇葉)

風量可達 7,000 m3/h

熱風溫度可達 400℃

ATEX (防爆) zone 1, 2, 22

(介質溫度 -20 ~ +60℃)

中壓(變頻、正/反轉)

熱風溫度可達 300℃

ATEX (防爆) zone 1,2,21,22

(介質溫度 -20 ~ +60℃)

中壓

風量可達 36,000 m3/h

除塵、鐵路、飲水機、表面處理、

研磨、乾燥、烤箱、包裝、電站、

食品

高壓(速度可達130Hz)

熱風溫度可達 300℃

防爆(介質溫度 -20 ~ +60℃)

鍋爐型 (直列式葉片)

耐溫可達 300℃

用於運輸灰塵或煤煙顆粒

移動型 (伸縮手柄、兩輪)

加油站、庫存、船舶集裝、充填站、

吸管、鐵路、木質顆粒車(無防爆)

熱風型 (熱風溫度可達 600℃)

工業烤箱、熱處理爐、對流器、

輻射供暖、焚化爐、熱處理廠、

貝克烤箱、循環空氣操作

氣密型 (焊接密封)

螺絲及螺紋密封

防滲報告

附加密封法蘭之馬達洩漏規格

不鏽鋼型

熱風溫度可達 600℃

焊接經過玻璃粒噴砂處理

防爆(介質溫度在-20~+60°C)

鑄鐵型

介質溫度可達 400℃

基座可旋轉達 45°、變頻驅動

防爆(介質溫度在-20~+60°C)

輸送帶 (直列式葉片)

鑄鐵外殼、不鏽鋼直列式葉片

輸送砂礫粉塵、刨花和輕質物料

隔音型

外殼護套可減少結構聲

彈性材料完全包覆或使用隔音罩

可做溫度隔離

大流量

風量可達 650,000 m3/h

重型工業設計、折疊式葉輪、

外殼套用於隔音、分半箱

防爆(介質溫度在-20~+60°C)

插入型

介質溫度可達 650℃

後彎曲扇葉、皮帶或直接驅動

防爆(介質溫度在-20~+60°C)



防爆型 (氣體防爆 zone 1, 2)

溫度等級 T3, T4 - T6

沼氣廠、電加熱、環境、庫存、

排氣、潔淨室、加油站、磨機、

船隻



防爆型 (粉塵防爆 zone 21, 22)

溫度等級 T 125℃、IP65

過濾廠、灌裝、銑削






TOP

External rotor fans

For the most varied application areas - compact and space-saving

 Application areas

·Apparatus engineering

·Ventilation systems

·Compact units

 Fans

·ENG 5-10 A

·ENG 4-6 A

·ENG 3-4 A

TOP

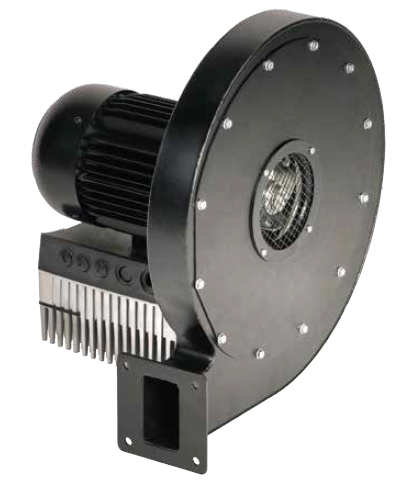

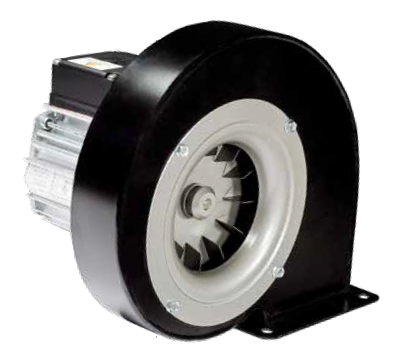

Low-pressure fans with drum impellers - to 7,000 m3/h, 11.0 kW

Gap-free production program in series production

 Standard

·Compact design

·Impellers with a high volume flow and small diameter,

available with a wheel Ø of up to 315 mm or 11.0 kW

·Case made from steel sheet, painted black

·Clockwise or anti-clockwise rotation

·Frequency adjustable

 Extensive accessories

·Available as a dual fan

·Up to 1.0 kW in multi-range voltage 50/60 Hz

·V2A, from 0.55 kW V4A

·For hot air to 400°C in continuous operation

·ATEX zone 1 and 2 or Zone 22 (for media

 temperature of between -20°C and +60°C)

·Rail-suitable design

·With hydraulic drive

·Water-cooled drive

TOP

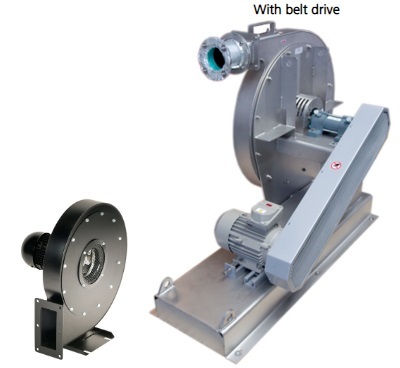

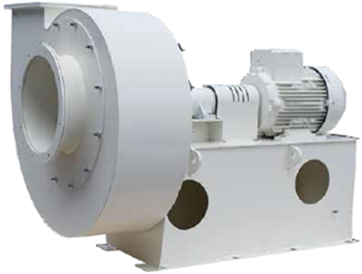

Low-pressure fans with backward curved blades

 Standard

·2- or 4-pole

·Highly efficient impellers

·Case made from steel sheet

·Clockwise or anti-clockwise rotation

·Frequency adjustable

 Optional

·Coupling

·Extensive accessories

·Stainless steel (V2A, V4A)

·For hot air to 600°C in continuous operation

·ATEX zone 1, 2, 21, or 22

(for media temperature of between -20°C and +60°C)

TOP

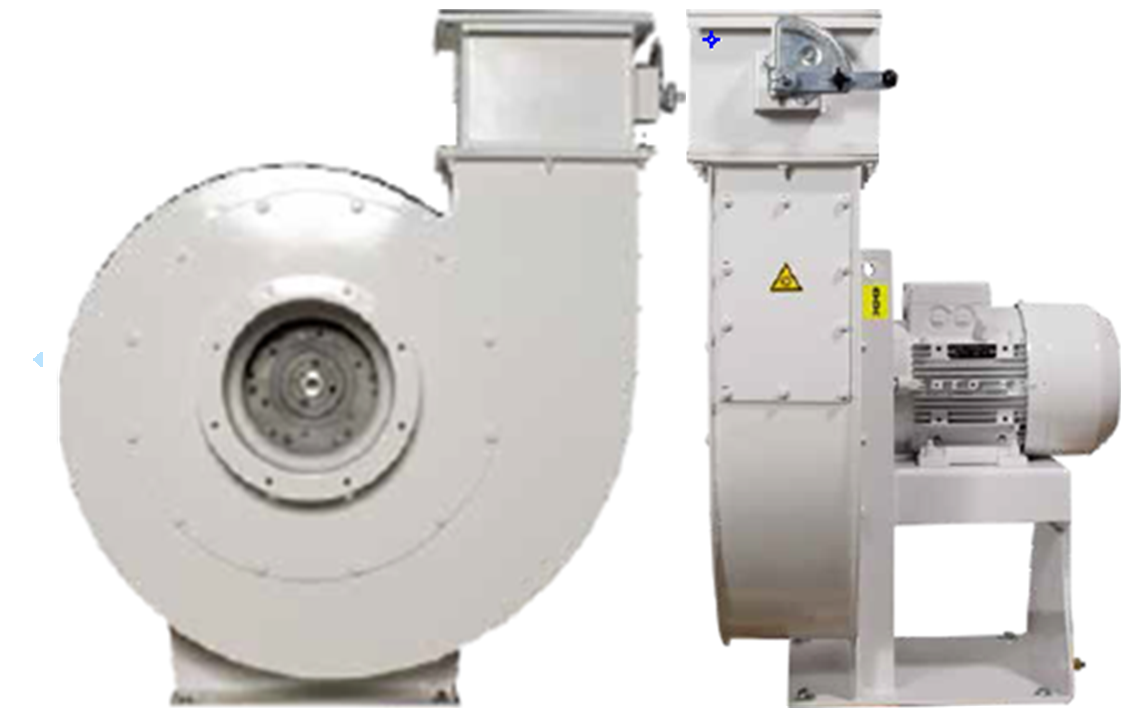

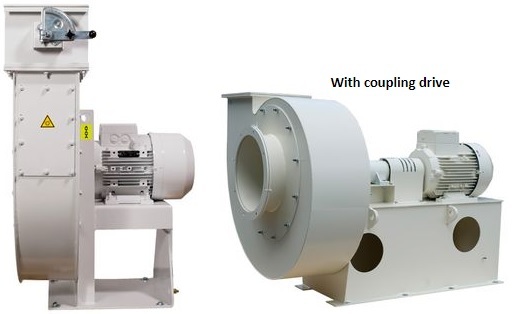

Medium-pressure fans

 Standard

·Fan case made from painted steel sheet

·Impellers made from aluminium

 (for ATEX: Steel impellers)

·With backward or forward curved blades

·Frequency adjustable

 Optional

·Stainless steel (V2A, V4A)

·For hot air to 400°C in continuous operation

·ATEX zone 1, 2, 21, or 22 (for media

 temperature of between -20°C and +60°C)

TOP

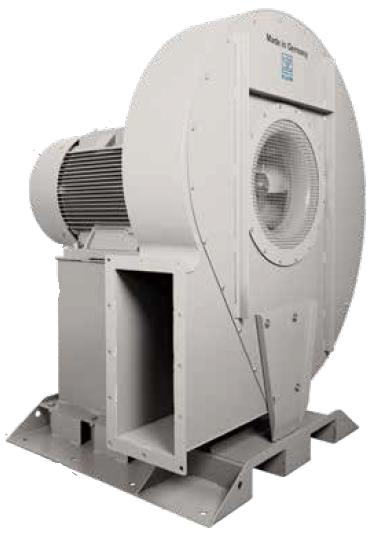

High-pressure fans

 Special features

·Speeds of up to 130 Hz

·Variable frequency drive built on or as switching

 cabinet version

·Impellers made from aluminium (for ATEX: Steel)

 Optional

·Stainless steel (V2A, V4A)

·Hot air to 300°C (more or less than this in

 individual cases)

·ATEX (VFD in switching cabinet, for media

 temperature of between -20°C and +60°C)

TOP

Boiler fans

 Special features

·Motor can be supplied with Hall sensor as

·rotational speed monitor

 Specifications

·Seal-welded case

·Impellers with straight blades, suitable for dust and soot particles

·Temperature barrier to 350°C

TOP

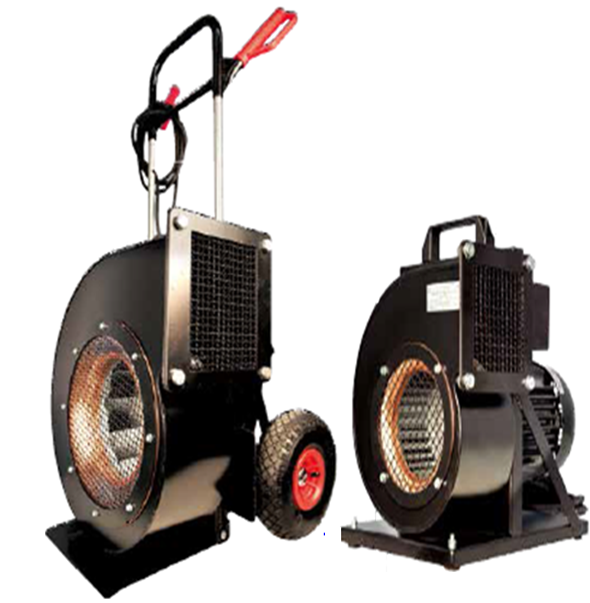

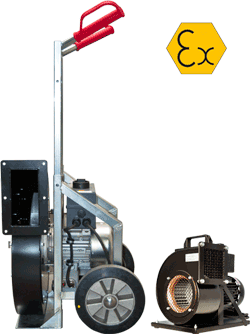

Mobile fans

 Application areas

·Fuel station service

·Storage systems

·Ship containers

·Rail containers

·Filling stations

·Long suction sections

·Wooden pellet delivery vehicles

 Specifications

·Frame with 2 wheels in stable industrial design

·Telescopic handles

·Can be carried with a carry handle

Special features

·Type examination certificate as per DIN EN 14986 and DIN EN 13463

·3 x 400 V, 50 Hz drives, from 0.12 to 1.5 kW

·Suitable for use in zones 1, 2, and 22

TOP

Hot air fans - up to 600°C in continuous operation

 Application areas

·Industrial oven construction

·Baker's oven construction

·Radiant heating systems

·Convectors

·Heat treatment furnaces

·Incinerators

·Recirculating air operation

·Heat treatment plants

 Special features

Can be supplied with sealed temperature barrier

Plug fan as of impeller diameter of 710 mm to

600°C continuous operation

TOP

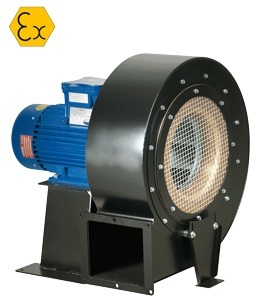

ATEX zone 1 and 2 fans

 Application areas

·Biogas plants

·Environmental technology

·Storage technology

·Shipbuilding

·Electrical heating systems

·Suction systems

·Clean room technology

·Filling systems

 Special features

·Gas Ex-zones 1 and 2

·Explosion groups IIA, IIB, and IIC as per DIN EN

 14986

·Temperature class T3, temperature class T4 - T6

 available on request

·Variable frequency drive operation

·"Non-electrical equipment" as per DIN EN 13463

 Parts 1 and 5

·Documentation for drive (electrical part) and fan

(non-electrical part)

TOP

ATEX zone 21 and 22 fans

 Application areas

·Filter technology

·Filling systems

·Large-scale mills

 Specifications

·Dust Ex-zones 21 and 22

·Explosion groups IIIA, IIIB, and IIIC as per DIN EN

14986

·Temperature class T 125°C

·Variable frequency drive operation

·"Non-electrical equipment" as per DIN EN 13463 Parts 1 and 5

·Documentation for drive (electrical part) and fan (non-electrical part)

·Ex-protection for dust-containing media in or around fan

TOP

Gas-tight fans

Special features

·Seal-welded fan case

·Sealed screwed-on parts, including

 screws/threads

·Impermeability report

·Specification of motor leakage rate with additional sealing flange

TOP

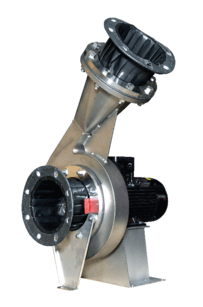

Stainless steel fans

 Special features

·Case, impeller, motor shaft, screws in stainless

 steel

·Material V2A (AISI 314) or V4A (AISI 316)

·Accessory parts in V2A

·Welded assemblies are glass-bead-blasted

 Optional

·For hot air to 600°C in continuous operation

·ATEX (for media temperature of between -20°C

 and +60°C)

TOP

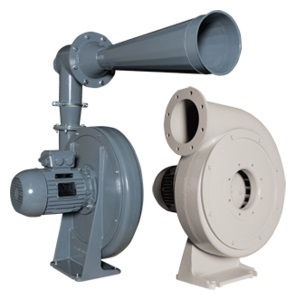

Cast fans

 Standard

·Case made from cast iron, including base

·Base can be rotated up to 45°

·Suction-side flange connection with threaded holes

·Pressure-side flange connection with through-holes

·Felt seal on shaft passage

·Suction-side silicone seal on case cover

·Motor with PTC thermistor

 Optional

·50 or 60 Hz operation

·Pole-changeable

·ATEX (for media temperature of between -20°C

 and +60°C)

·Suitable for variable frequency drive operation

·Media temperature of up to 400°C in continuous

 operation

TOP

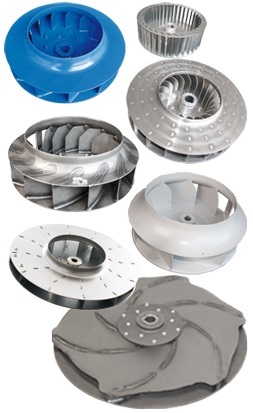

Kamptmann fan wheels

Special features

·Closed impellers

·Open impellers for the conveyance of materials, e.g. films or textile residue

·Forward curved, riveted or welded drum impellers

·Inlet nozzles

·Materials:

·Aluminium

·Painted or zinc-plated sheet steel

·Stainless steel AISI 314 or 316, N-A-XTRA®

·Impeller diameter of max. 1,500 mm



Transport fans (cast iron)

Special features

·Case made from cast iron, sealed

·Impeller made from steel with straight blades

·Stainless steel or N-A-XTRA®

·Suitable for the conveyance of coarse dusts, chips, and light bulk goods

TOP

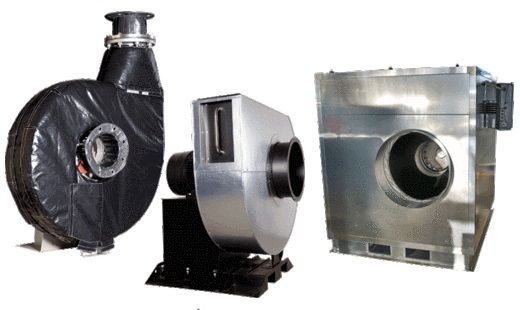

Sound protection measures

Special features

·Case sheathing for reduction in structure-borne sound

·Complete enclosures. Flexible, as case insulation or with sound protection canopy.

·For the isolation of thermal processes

TOP

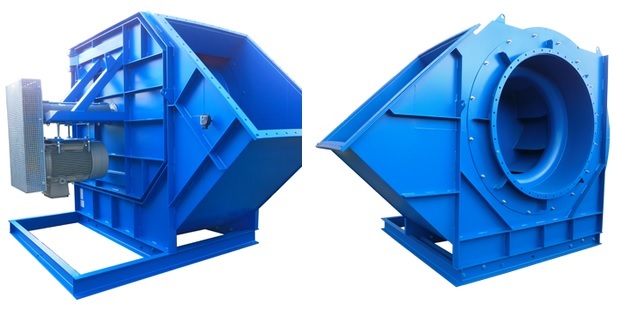

Large-volume radial fans - from our plant in Eisenberg/Thüringen

Special features

·Volume flows of up to 650,000 m³/h

·Pressure differences of up to 25.0 kPa

·Belt, coupling, or direct drives

·Heavy-duty industrial design

·Painting as per customer's requirements

·Media temperatures to max. 650°C

·Case sheath for sound insulation

·Split case halves

·Fold-out impeller

·ATEX designs (for media temperature of between -20°C and +60°C)

TOP

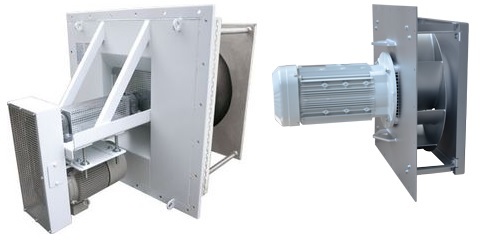

Radial plug fans

Special features

·Our own high-performance impellers with backward curved blades

·Impeller diameter of max. 2,500 mm

·Media temperatures of max. 650°C, with insulation housing if required

·Application-optimised material selection, e.g. sheet steel, stainless steel, N-A-XTRA®

·Mounting plates as per the customer's requirements

·Belt or direct drives

·ATEX designs (for media temperature of between -20°C and +60°C)

TOP
