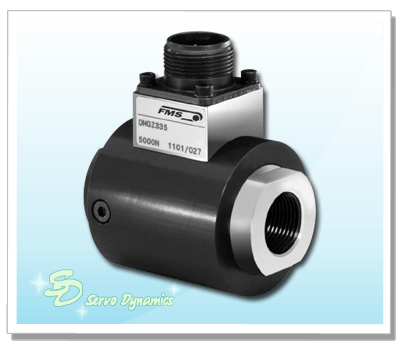

>>DMGZ 300 Series
The DMGZ 300 Series load cells measure force in the direction of the center axis of the sensor. A force is applied via threaded shaft, or other means, to the measuring portion of the sensor. They can provide both compression or tension measurement. The integrated high overload protection is designed to protect against sensor damage as well as to reduce recalibration requirements. |
|
>>Functional Description
The FMS DMGZ 300 Series compression / tension load cells utilize four foil-type strain gauges in a full Wheatstone Bridge configuration mounted on the sensor sleeve. This accurate and robust measuring method is ideal for any processing environment. |
|
>>Applications
– Compression or tension
force measurement
– Nip pressure measurement
– Punching forces |
