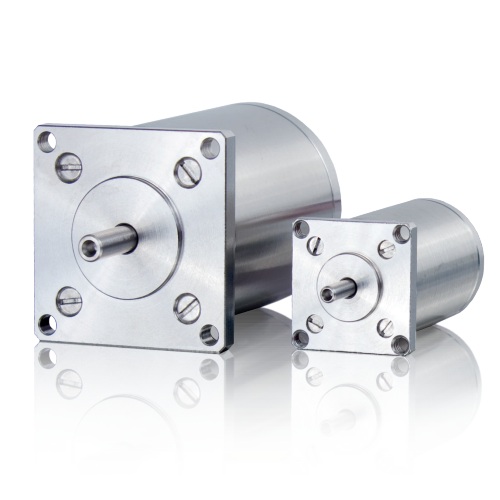

Phytron二相步進馬達(真空環境用)
Phytron VSS/VSH兩相真空步進馬達專為極端自然環境所設計的。
採用特殊的繞線、軸承及潤滑方式，能承受高真空度、抵抗高輻射性
及適用於大的溫度範圍(-270℃～300℃，依機型選用)所有產品符合
特性
|
型號
|
法蘭面
Mm
|
耐真空
kPa(mbar)
|
適用溫度
℃
|
抗輻射
J/Kg
|
保持扭矩
Nm
|
|
VSS/H-FV
|
19～125
|
10-3
|
-20～150
|
10
|
0.0034～9.9
|
|
VSS/H-HV
|
19～125
|
10-7
|
-20～200
|
102
|
0.0034～9.9
|
|
VSS/H-UHV
|
19～125
|
10-11
|
-20～300
|
106
|
0.0034～9.9
|
|
VSS/H-UHVC
|
19～125
|
10-11
|
-270～40
|
106
|
0.0034～9.9
|
|
HSS/H
|
55～120
|
|
40～150
|
|
0.1～5.0
|
|
ESS/H
|
45～100
|
|
-40～150
|
|
0.1～5.5
|
規格
|
型號
|
保持
扭矩
|
慣量
|
質量
|
型號
|
保持
扭矩
|
慣量
|
質量
|
型號
|
保持
扭矩
|
慣量
|
質量
|
||
|
mNm
|
Kg-cm2
|
Kg
|
mNm
|
Kg-cm2
|
Kg
|
Nm
|
Kg-cm2
|
Kg
|
|||||
|
V
S
S
|
19
|
3.4
|
0.0009
|
0.05
|
42
|
120
|
0.045
|
0.35
|
V
S
H
|
65
|
0.86
|
0.41
|
1.4
|
|
25
|
12
|
0.002
|
0.08
|
43
|
235
|
0.077
|
0.52
|
80
|
2
|
1.24
|
2.8
|
||
|
32
|
40
|
0.1
|
0.17
|
52
|
350
|
0.15
|
0.72
|
100
|
4.3
|
4.4
|
4.5
|
||
|
33
|
68
|
0.018
|
0.26
|
56
|
630
|
0.24
|
0.99
|
125
|
9.9
|
11.4
|
9.4
|
||
|
|
|
|
|
|
|
|
|
|
配件: Encoder, 剎車, 減速機可選擇
|
型號 |
適用 環境 |
真空 (hPa) |
溫度 (℃) |
保持扭矩 (Nm) |
抗輻射 (J/Kg) |
總質量損 TML(%) |
揮發損 CVCM(%) |
IP |
|
ESS/H |
惡劣 |
|
-40~150 |
0.15~5.5 |
|
|
|
67 |
|
ZSH |
惡劣 |
|
-30~80 |
0.45~17 |
|
|
|
68 |
|
VSS/H-HV |
極端 |
10-7 |
-20~200 |
0.0034~13 |
102 |
|
|
|
|
VSS/H-UHVS |
極端 |
10-11 |
-20~300 |
0.0034~13 |
106 |
<1 |
<0.1 |
|
|
VSS/H-UHVG |
極端 |
10-11 |
-20~300 |
0.0034~13 |
106 |
<1 |
<0.1 |
|
|
VSS/H-UHVC1 |
極端 |
10-11 |
-200~40 |
0.0034~13 |
106 |
<1 |
<0.1 |
|
|
VSS/H-UHVC2 |
極端 |
10-11 |
-270~40 |
0.0034~13 |
106 |
<1 |
<0.1 |
|
|
phySPACE |
太空 |
10-11 |
-40~120 |
0.0031~0.42 |
106 |
<1 |
<0.1 |
|
實例
 |
 |
 |
 |
 |
|
工業用
|
科學與研究
|
極端環境
|
醫療工程
|
真空與太空
|
 |
Phytron在火星上。Curiosity火星探測器的
ChemCam儀器裏，使用Phytron步進馬達
負責雷射和相機對焦
|
 |
 Vacuum Stepper Motors
19 -125 mm in Diameter
|
 Stepper motors
NEMA 8-34
|
 Stepper Motors SPACE
ø 19 – 56 mm
|
 Stepper Motors
19 – 56 mm in Diameter
|
 Stepper Motors
57 – 107 mm in Diameter
|
 Space Stepper Motors
19 – 125 mm in Diameter
|
 Cryo Stepper Motors
19 – 125 mm in Diameter
|
 Extreme Environment Stepper
Motors 45 – 100 mm
|
 Linear Actuator for cryogenic
Vacuum
|
 VSS / VSH
Vacuum Stepper Motors
19 -125 mm in Diameter
|
Technical Details
•Stepper motors for vacuum applications
•Vacuum classes:
Fine vacuum up to 10-3 kPa
High vacuum up to 10-7 hPa
Ultra high vacuum up to 10-11 hPa (dry bearing or greased bearing)
•Winding temperature range from –20 to +300 °C
•Radiation resistance up to 106 J/kg
•Holding torques from 3.4 mNm to13 Nm
•Diameters 19 to 125 mm
•Number of steps: 200 (1.8°) standard
•Step accuracy 5 %
Optional:
VPGL planetary-/Harmonic Drive gear,
Thermal element type KTC/ Pt100 resistor sensor, resolver, double shaft
Customised design:
Operating in an agressive environment, clean room compatible, motors with spindle |
 phyBASIC
Stepper motors
NEMA 8-34
|
Technical Details
•2-phase stepper motors
•Holding torques from 50 mNm to 7.2 Nm
•Edge dimension from 20 to 86 mm
•Number of steps (standard) 200
•Step accuracy 5 % for 1.8° stepper motors
•Operating voltage phyBASIC 20,28,42 (NEMA 8,11,17): 36 to 48 VDC
phyBASIC 56,86 (NEMA 23/34): 72 VDC
•Standard connection: 4-lead parallel
•Protection class IP 40
•Insulation class B, 130 °C
•Insulation resistance 100 MΩ
•Cable with mating connector included
•Options / Customising: Gear...
|
 phySPACE
Stepper Motors SPACE
ø 19 – 56 mm
|
Technical Details
•2-phase-hybrid stepper motor
•holding torque from 3.1 to 420 mNm
•diameter from 19 to 56mm
•200 fullsteps per revolution
•Accuracy 5% for 1,8°
•designed for shock and vibration loads
•4-leads parallel
•pre-outgassed
•K-element integrated
•-40 °C to +120 °C
•up to 160 °C winding teperature (short term)
•radiation resistent up to 106 J/kg
•outgassing temperature up to 200 °C (components)
•outgassing rates: TML <1%, CVCM <0.1% or better( <125 °C)
Upgrade Options:
•Upgrade "light-Weight" : Housing and shaft made of titanium
•Upgrade "radiation hardened" : Radiation resistent up to 106 J/kg due
to special materials
•Upgrade "space-testing" : Vibration test, shock, thermal cycling
Customised Solutions:
Based on our product series there is a large variety of additional options and solutions
to create a perfect fit for your application.
(Low temperatures, spindles, gears, second shaft end and more.) |
 ZSS
Stepper Motors
19 – 56 mm in Diameter
|
Technical Details
•Two-phase hybrid stepper motors for unipolar or bipolar control mode
•Holding torques from 3.8 to 700 mNm
•Sizes ZSS 19 to 56 mm
•Up to 3 motor types and 3 standard windings per size
•Standard number of steps/rev.: 200, step angle: 1.8°
•Special number of steps depending on the motor size
•Minimum protection mode: IP40
•Permissible ambient temperature: -30 °C to +80 °C
•Optional: gear, motor brake, encoder, 2nd shaft, heat sink, coupling, etc.
Available Models:
•Sizes, numbers of steps, windings: see table in the data sheet
•Free wire ends or protective cover, heat sink, 2nd shaft
•Gear, motor brake, encoder
|
 ZSH
Stepper Motors
57 – 107 mm in Diameter
|
Technical Details
•Two-phase hybrid stepper motors for unipolar or bipolar control mode
•Holding torques from 0.45 to 17 Nm
•Diameters ZSH: 57 to 107
•NEMA compatible
•Number of steps/rev.: 200, step angle: 1.8°
•Minimum protection mode: IP54, IP68 on request
•Permissible surface temperature: -30 °C to +80 °C
(short-time up to 100 °C)
Available Models:
•Sizes and windings: see table in the data sheet
•Free wire ends or terminal box, 2nd shaft
•Gear, motor brake, encoder
|
 VSS SPACE
Space Stepper Motors
19 – 125 mm in Diameter
|
Technical Details
•Stepper motors for operation in space
•High shock and vibration loads
•Vacuum up to 10-11 hPa
•Temperature ranges depend on the application
•Radiation resistance up to 106 J/kg
•Holding torques from 3.4 mNm to 9.9 Nm
•Diameters 19 to 125 mm
•Full steps per rotation: 500 (0.72°), 200 (1.8°), 72 (5°)
•Outgassing holes to avoid pockets of trapped gas
Optional:
Gear (e. g.: VPGL low backlash gear) - Double shaft - etc.
Customized constructions:
Integrated motor gear types for reduction of weight and vibration resistance -
Titanium housing etc.
|
 VSS-UHVC (Cryo)
Cryo Stepper Motors
19 – 125 mm in Diameter
|
Technical Details
•Two-phase stepper motors for applications in ultra high vacuum (Cryo) up to
10-11 mbar
•Suitable for low temperatures: He (-269 °C) or N2 (-196 °C)
•Radiation resistance up to 106 J/kg
•Stainless steel housing
•Holding torques from 3.4 mNm to 9.9 Nm
•Full steps per rotation: 500 (0.72°), 200 (1.8°), 72 (5°)
•Protection class IP 00 because of outgassing holes to avoid pockets of trapped gas
Optional:
Gears, Double shaft, Temperature sensors
Customized constructions:
Titanium housing - Space - Reduced magnetic emission |
 ESS / ESH
Extreme Environment Stepper
Motors 45 – 100 mm
|
Technical Details
•Stepper motors for the toughest environmental conditions e. g.
in climatic chambers, in the maritime or chemical industry
•Stainless steel housing
•Temperature range from -40 to +150 °C
•Relative humidity up to 95 %
•Protection class IP 67, replaceable radial sealings
•Holding torques from 150 mNm to 5.5 Nm
•Diameters 45 to 100 mm
•Standard number of steps 200 (1.8°)
•Special design on demand: suitable for food industry – radiation resistant
Available versions:
Standard sizes 45, 59, 80 and 100
|
 Cryo-Vacuum-Actuator
Linear Actuator for cryogenic
Vacuum
|
Technical Details
Spindle motor design for particle accelerator applications based on the VSS standard:
•stepper motor with 200 steps/rev (1.8°), with integrated gear 50:1 (10:000 steps/revolution)
•designed for 1300N axial force
•spindle and nut system, non magnetic
•material for housing, flanges and internal parts stainless steel or titanium
•dry lubricated suitable for usage under vacuum at -270°C up to +40°C
(also as grease lubricated version for enviornments > -35°C)
•optional EMC cable shielding
•thermocouple K-type in winding
|
