JVL 整合型伺服/步進馬達



整合型伺服馬達及步進馬達的特色

◆ 整合驅動器與馬達一體,馬達動力線/信號線已內建

少了動力線/信號線,安裝省時、省線材、減少接線錯誤、少雜訊干擾、售後服務更容易,省成本

可透過脈波/方向、A/B相、類比信號(±10V)、通訊協定、可程式數位IO…等,多樣的控制方式

通訊協定:串列埠(包括RS-232RS-422、RS-485)、

                     現場總線(Fieldbus,包括CANopenProfibus DP、DeviceNet)

                   、工業乙太網路(EtherCATEtherNet/IP、ProfiNet IO、PowerLink

                   、Modubus TCP/IP、Sercos) 、無線區網(包括WLANBluetooth、ZigBee)…等協定

乙太網路協定,透過韌體更新方式,可轉成想要的乙太網路協定





*

Servo Motors

50 W.. 4.5 kW

Stepper Motors

0.4.. 25 Nm

Linear Stepper

Motors

Stepper Motor

Controllers

Cables

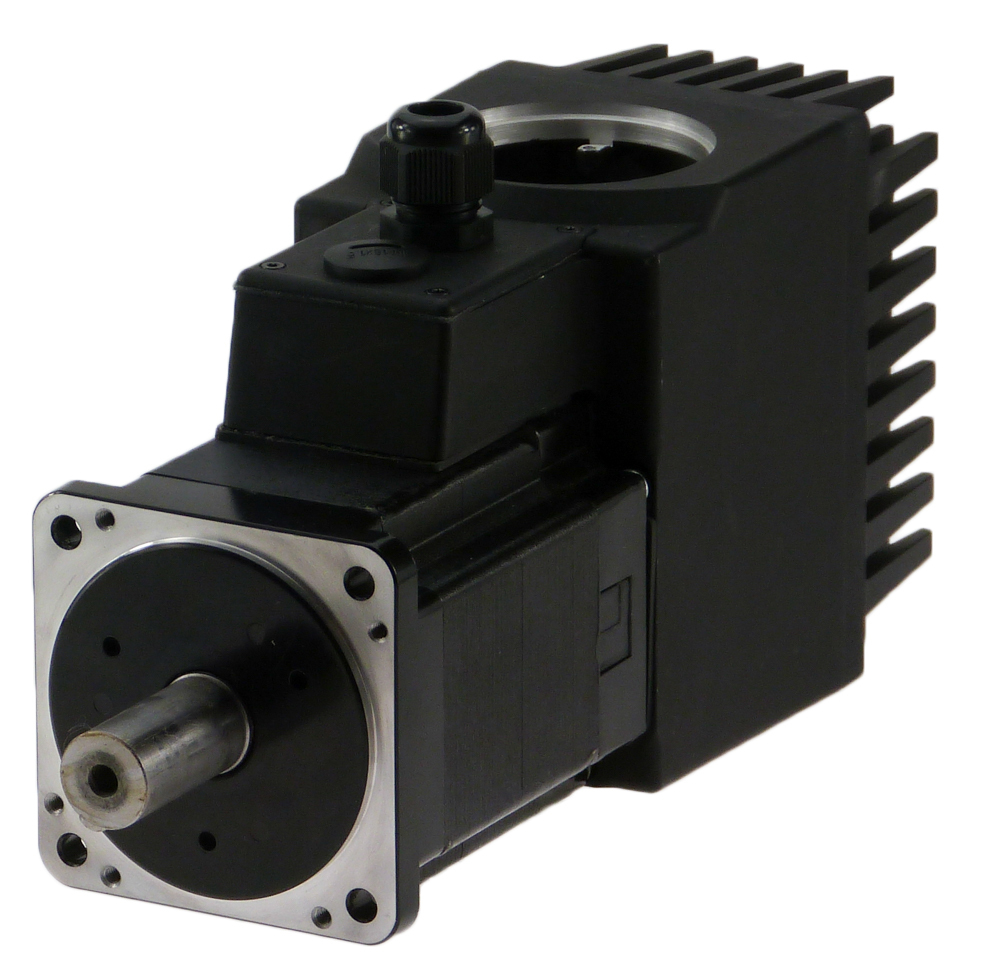

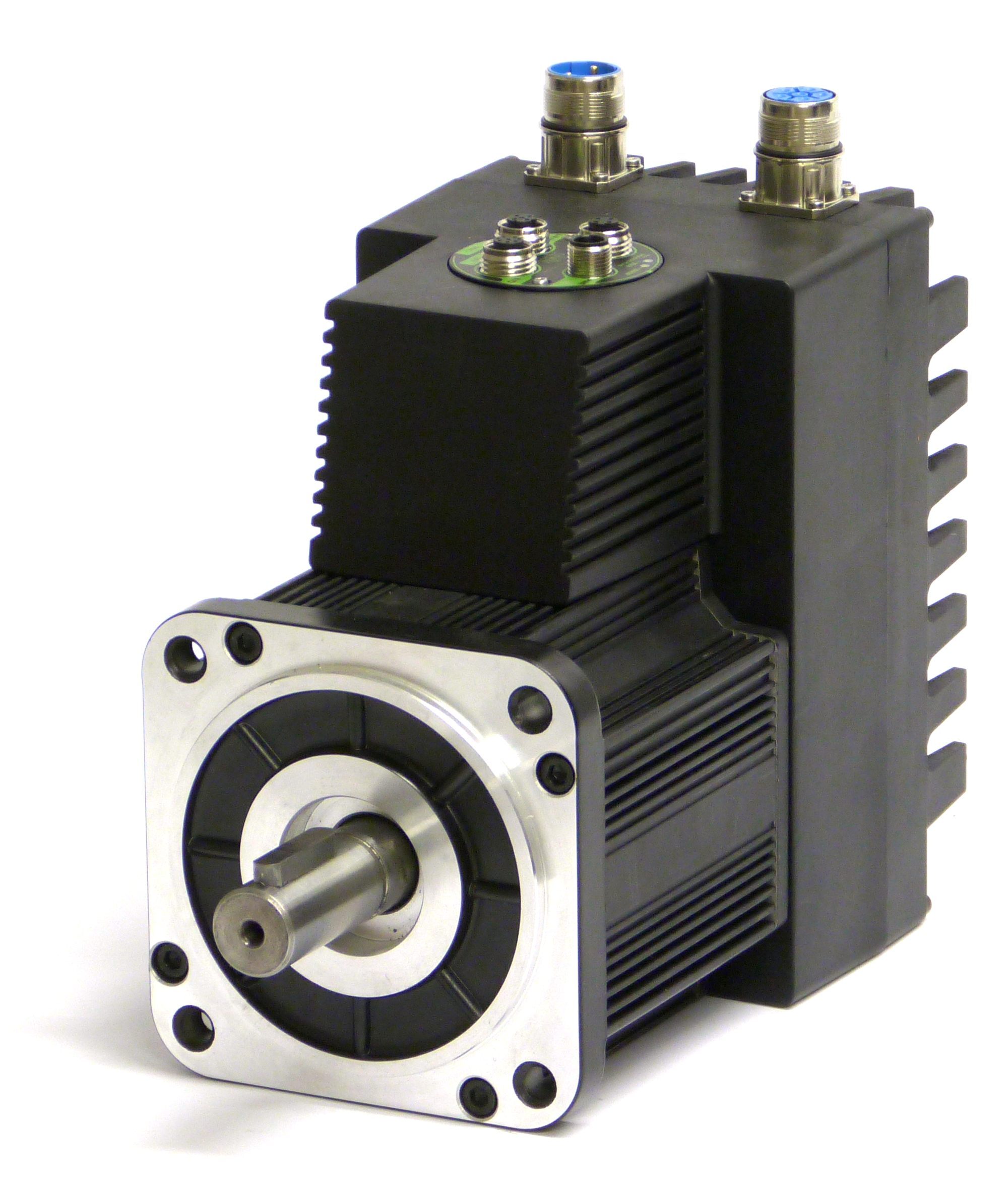

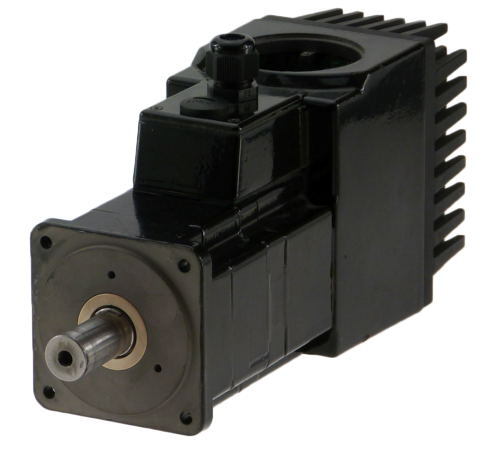

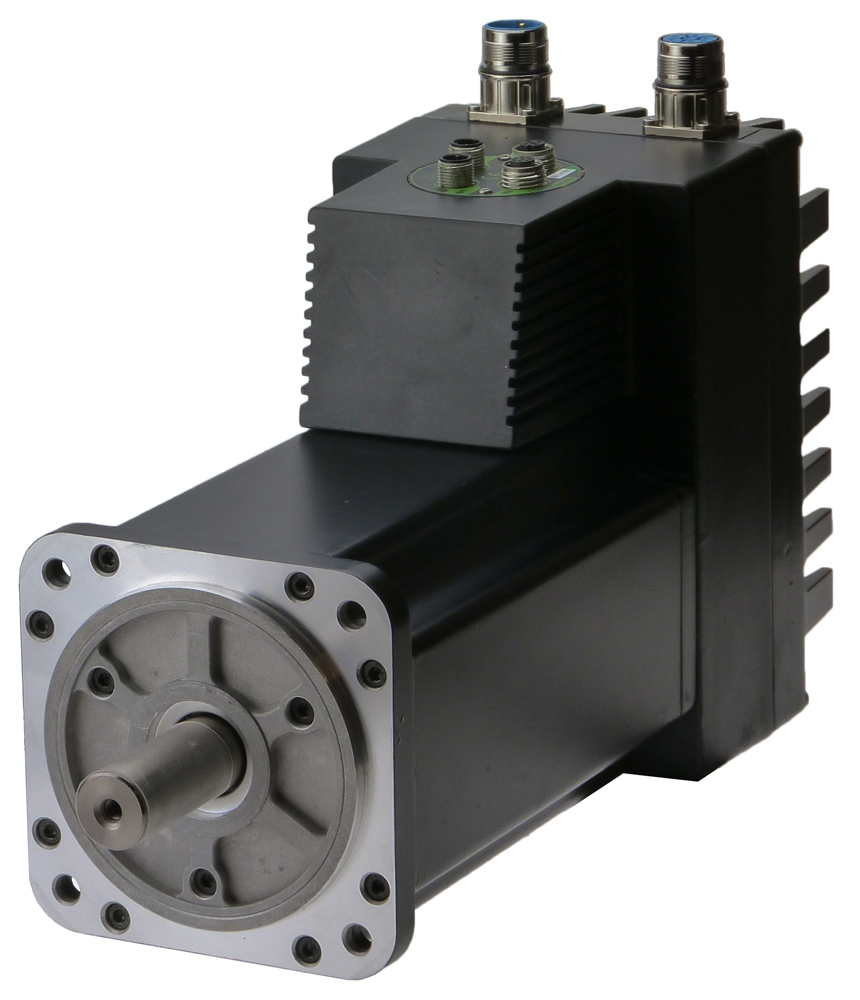

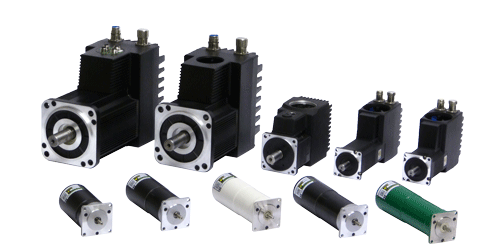

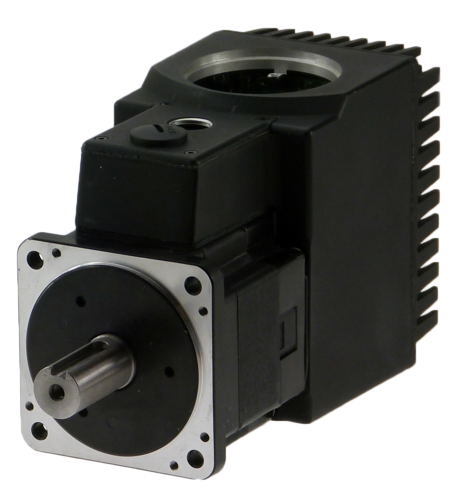

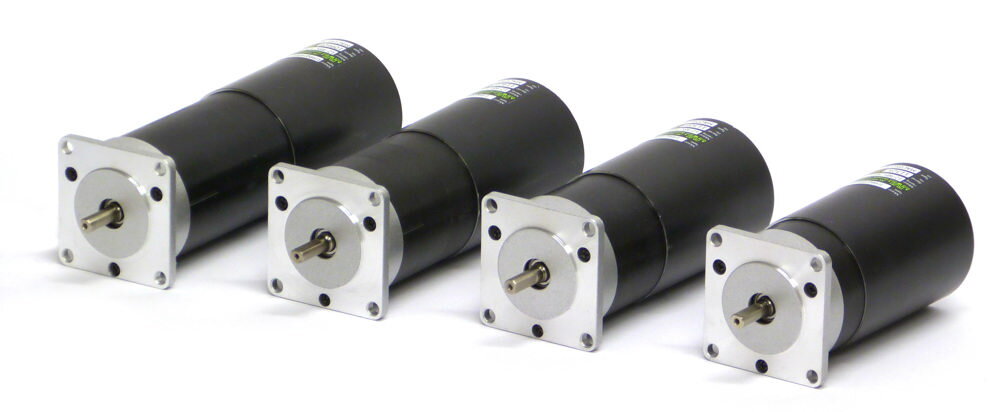

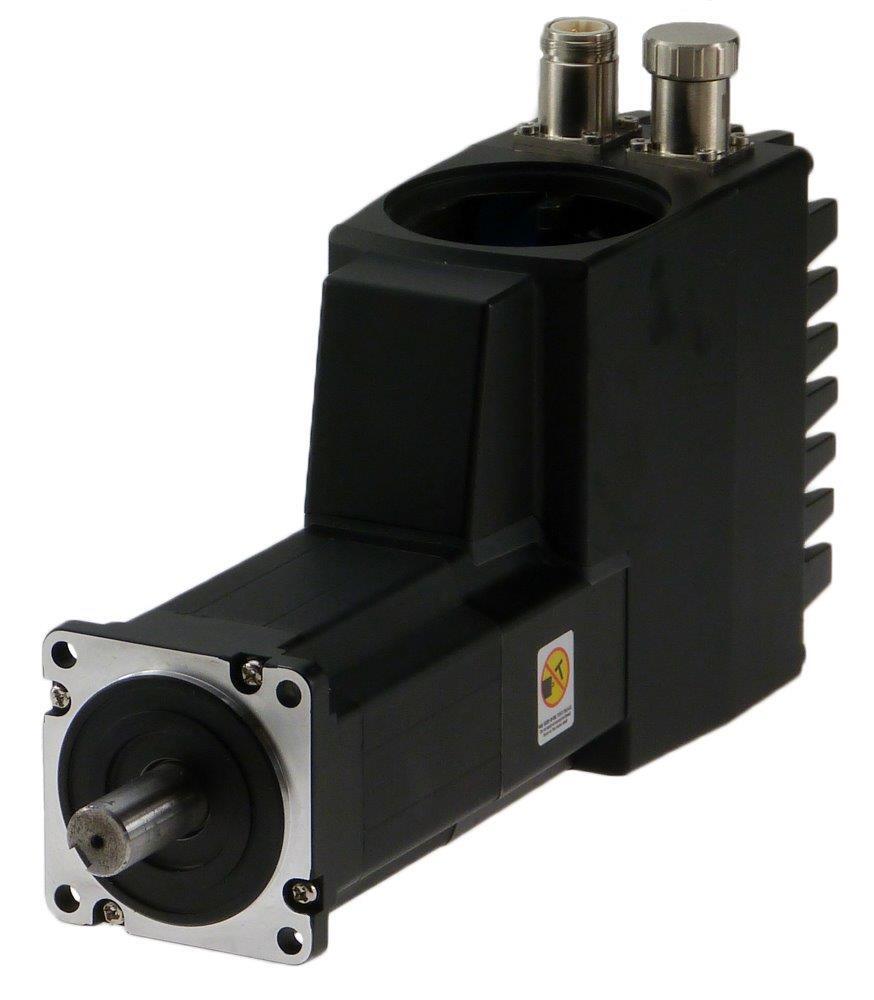

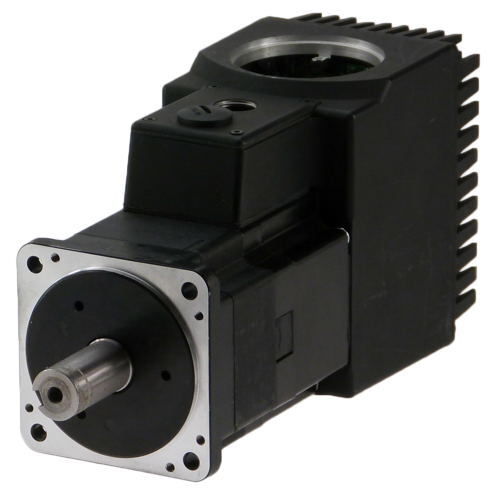

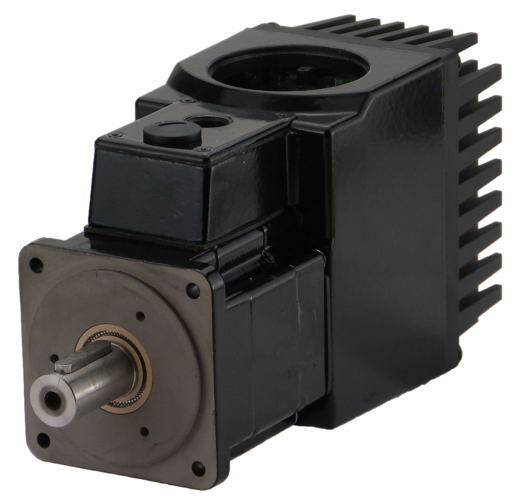

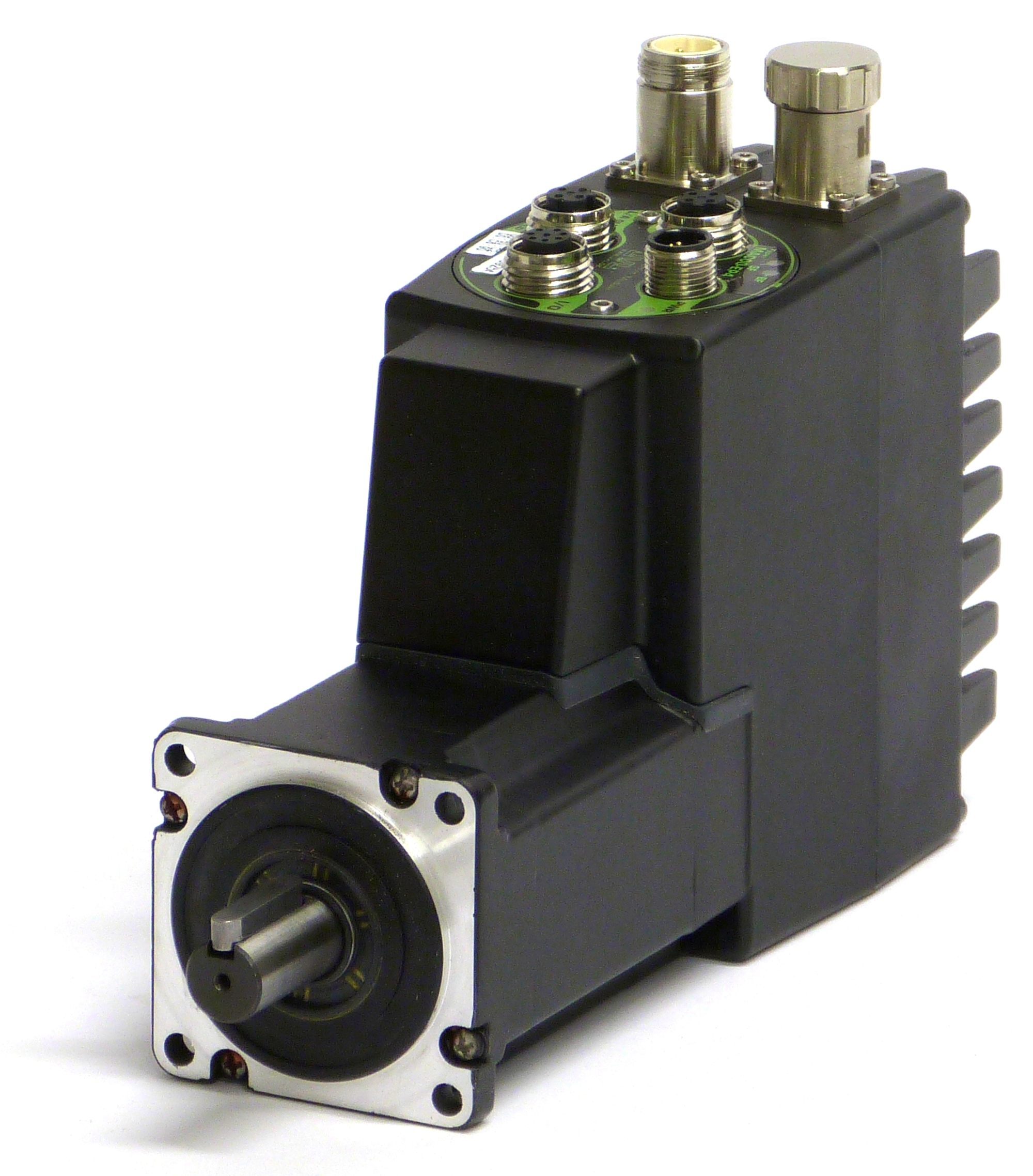

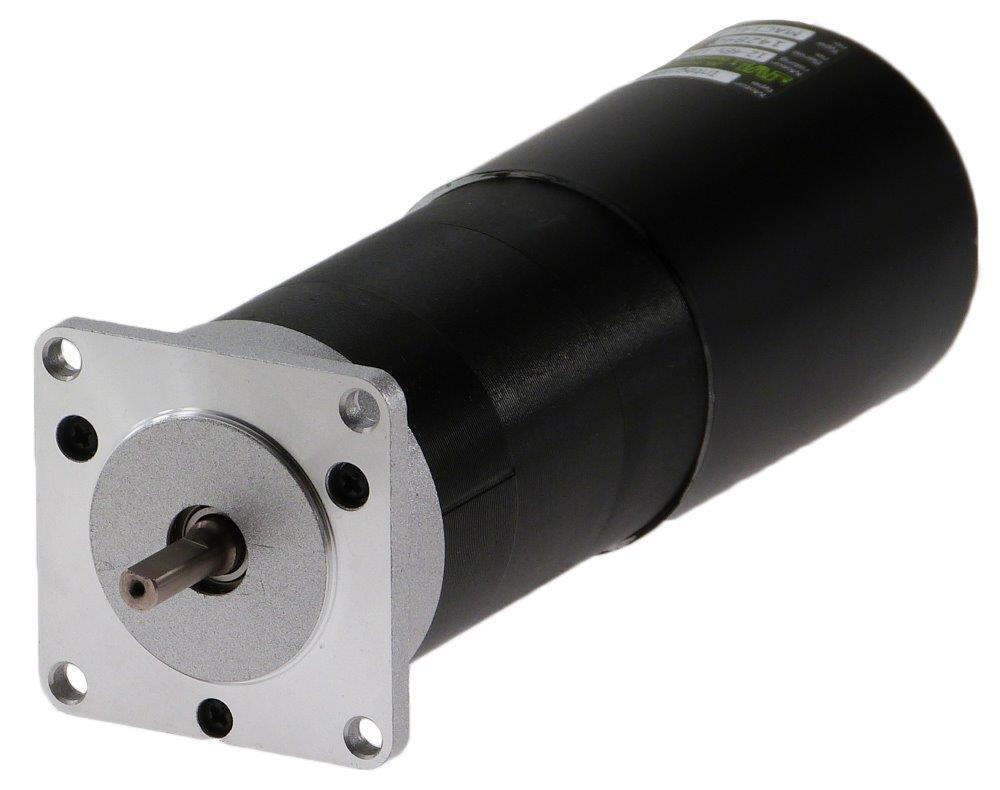

1. Servo Motors 50 W.. 4.5 kW

Order no.

Power

(Watt)

Torque RMS

/Peak (Nm)

Protection

Brake



MAC050

MAC095

MAC140

MAC141

46

0.11/0.32

Standard

IP42

(IP65 optional)

Optional

External

92

0.22/0.62

134

0.32/0.9

134

0.48/1.59

MAC140

MAC141

134

0.32/0.9

Water

proof

IP67

Optional

External

134

0.48/1.59

MAC140-F

MAC141-F

134

0.32/0.9

Standard

IP42

(IP65 optional)

Optional

External

134

0.48/1.59

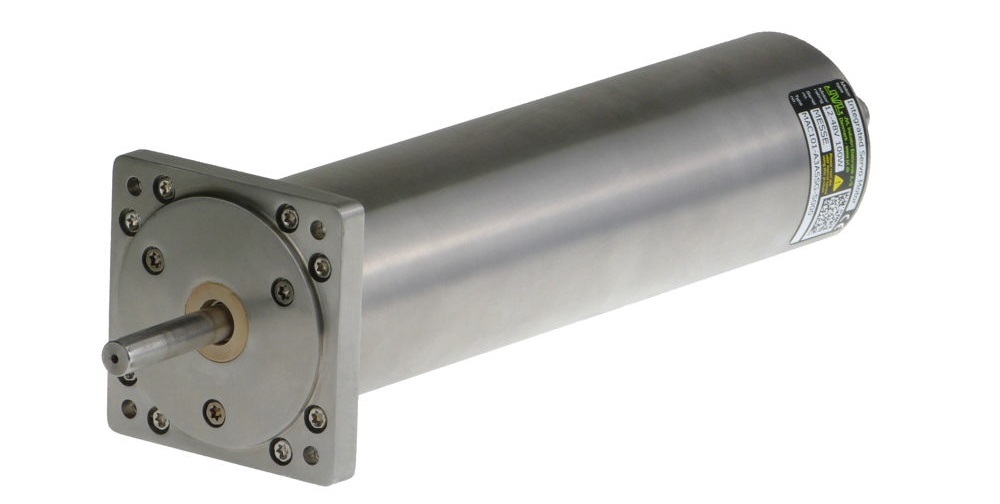

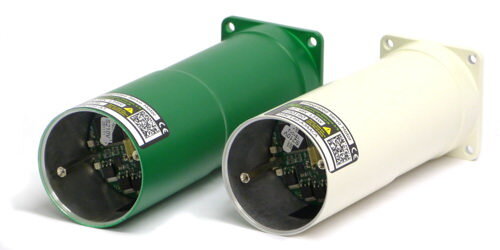

MAC101-A..

134

0.48/1.59

Stainless

Steel

IP67

No

MAC101-F..

134

0.48/1.59

Stainless

Steel

IP67

No

MAC400-D2

MAC402-D2

400

1.3/3.8

Splash

Proof

IP55

No

MAC400-D5

MAC402-D5

400

1.3/3.8

Splash

Proof

IP55

Yes

Built-in

MAC800-D2

734

2.38/6.8

Splash

Proof

IP55

No

MAC800-D3

560

1.78/6.8

Water

Proof

IP66

No

MAC800-D5

734

2.38/6.8

Splash

Proof

IP55

Yes

Built-in

MAC800-D6

560

1.78/6.8

Water

Proof

IP66

Yes

Built-in

MAC1200-D2

1140

3.8/11.4

Splash

Proof

IP55

No

MAC1200-D5

1140

3.8/11.4

Splash

Proof

IP55

Yes

Built-in

MAC1500-D2/5

1500

5.0/15.0

Splash

Proof

IP55

Optional

MAC1500-G2/5

1500

Splash

Proof

IP55

Optional

MAC3000-D2/5

3000

9.55/28.7

Splash

Proof

IP55

Optional

MAC3000-G2/5

3000

Splash

Proof

IP55

Optional

MAC4000-G2/5

4500

14.3/52

Splash

Proof

IP55

Optional

返回

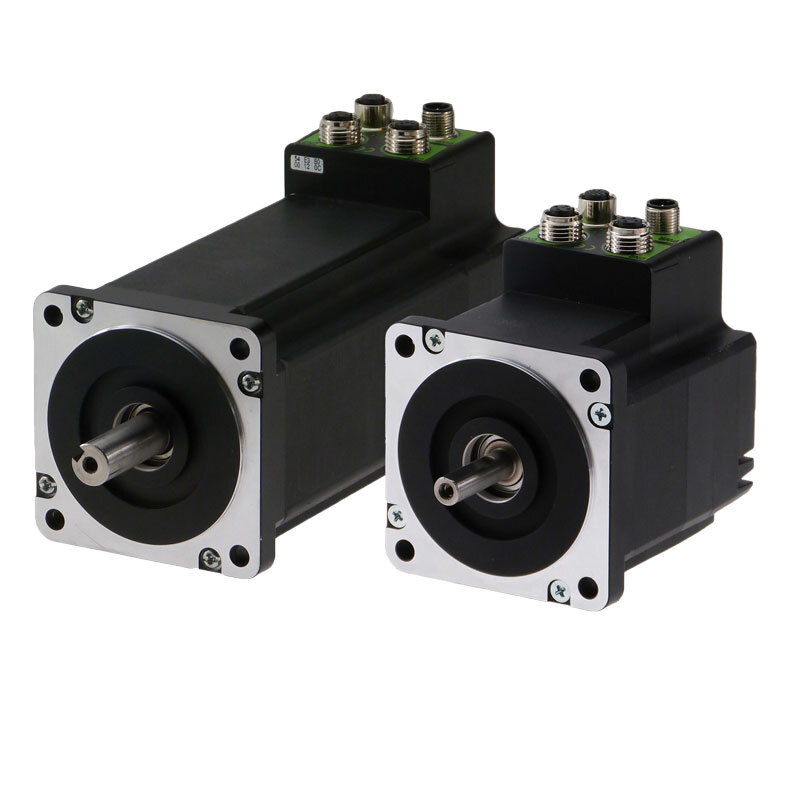

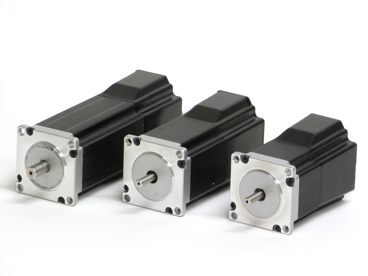

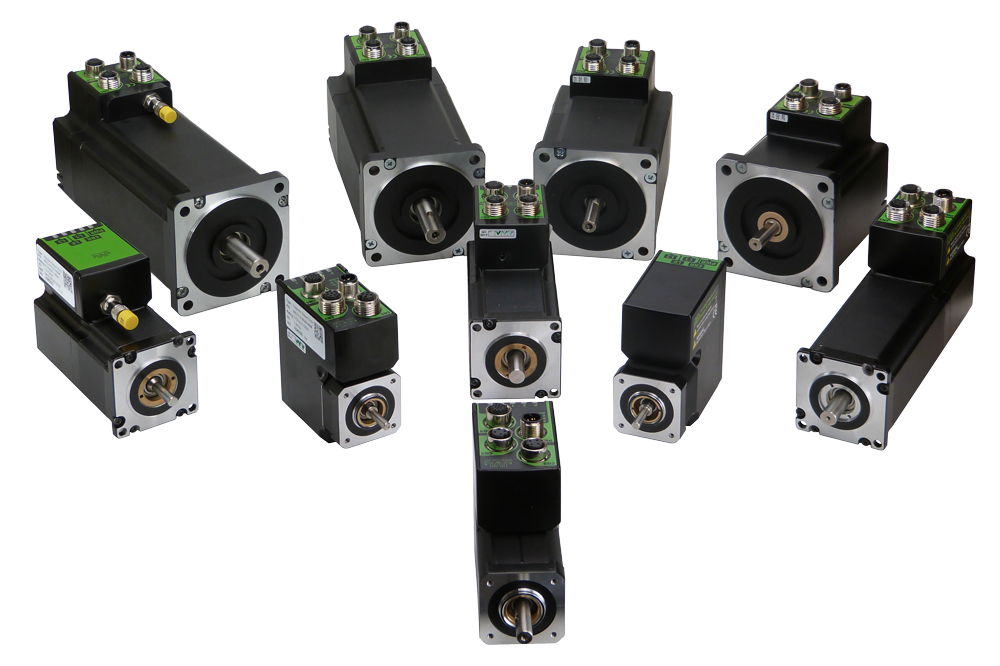

2. Stepper Motors 0.4.. 25 Nm

Order no.

Torque Holding

/Running (Nm)*

Protection (Optional)

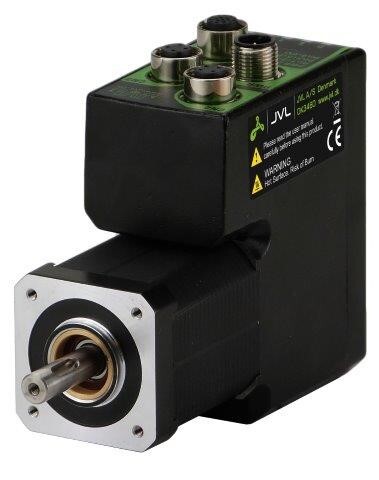

Stepper Motor NEMA17  (42x42mm Flange)

MIS171Q/S

0.18/0.18

Standard IP42 (IP65)

Integrated w/ SMC66

MIS173Q/S

0.40/0.40

MIS176Q/S

0.78/0.78

Stepper Motor NEMA23  (57x57mm Flange)

MIS231Q/S

0.97/0.97

Standard IP42 (IP65)

Integrated w/ SMC66

MIS232Q/S

1.97/1.97

MIS234Q/S

3.08/3.08

MIS231R/T

1.16/1.16

Standard IP42 (IP65)

Integrated w/ SMC66

MIS232R/T

2.53/2.53

MIS231A

1.3/1.1

Standard IP42(IP65)

Integrated

MIS232A

1.8/1.6

MIS234AT

3.0/2.9

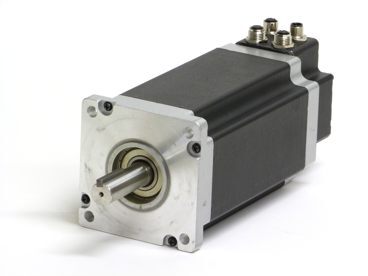

Stepper Motor NEMA34  (86x86mm Flange)

MIS340C

3.0/3.0

Standard IP42(IP65)

Integrated

MIS341C

6.1/6.1

MIS342C

9.0/7.5

MIS343C

12.0/10.0

Stepper Motor NEMA43  (110x110mm Flange)

MIS430C

10.0/10.0

Standard IP42

Integrated

MIS431C

18.7/18.7

MIS432C

25.0/25.0

*Values are truncated.

Order no.

Max. Current (A)

Protection (Optional)





Stepper Motor Controller SMC75 Max. 3 Amp

SMC75xxMx

3

Standard IP42

SMC75 with housing

SMC75xx

3

Open board

SMC75 with no housing

Stepper Motor Controller SMC66 Max. 6 Amp

SMC66xx

6

Standard IP42(IP65)

SMC66 with housing

SMC66xx

6

Open board

SMC66 PLC

Stepper Motor Controller SMC85 Max. 9 Amp

SMC85xxMx

9

Standard IP42(IP65)

SMC85 with housing

SMC85xx

9

Open board

SMC85 PLC

返回

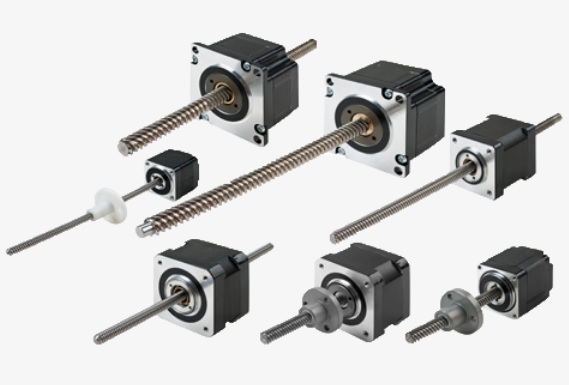

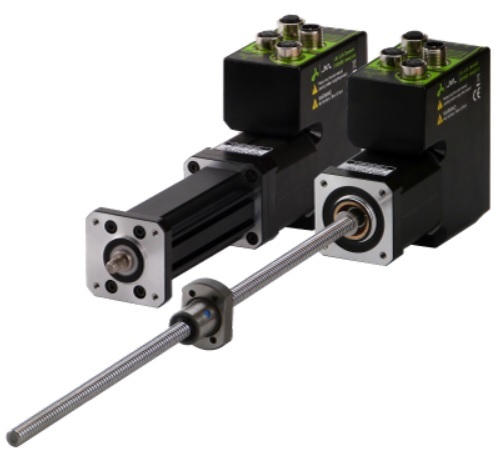

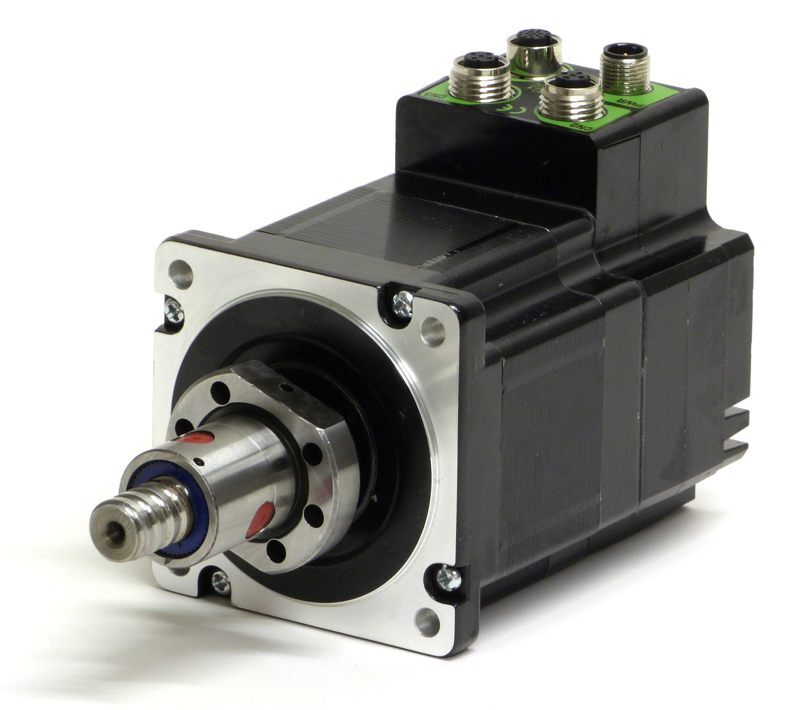

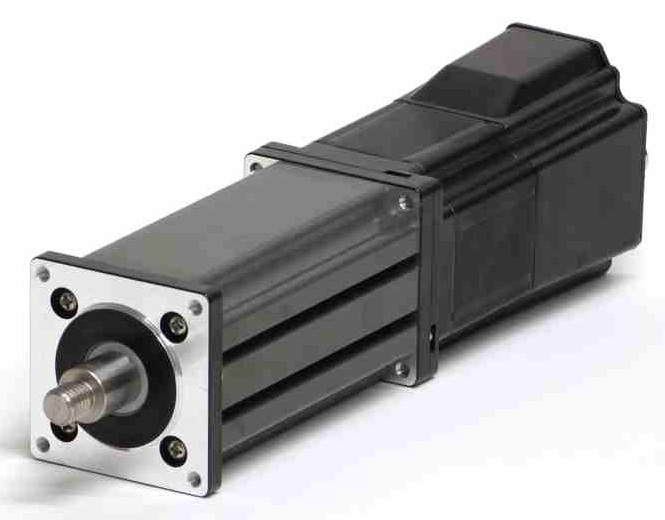

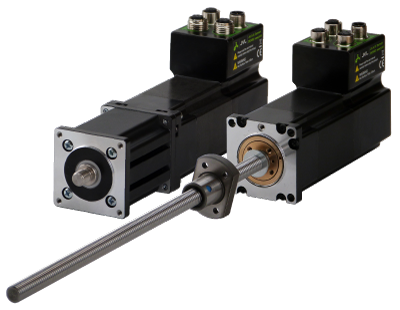

3. Linear Stepper Motors

Motor type

Size mm / (inch)

Screw types



MIL17

42(1.7)

·Integrated electric actuators with piston

·Electric actuators with open spindle

MIL23

2. Gen

57(2.3)

·Integrated electric actuators with piston

·Electric actuators with open spindle

·Integrated spindle drives

MIL34

86(3.4)

·Integrated electric actuators with piston

·External lead screw

·External ball screw

Linear QuickStep Motors with Integrated controller or driver.

Motor type

Size mm / (inch)

Screw types



MIL23

57(2.3)

·Integrated electric actuators with piston

·External lead screw

·External ball screw

返回

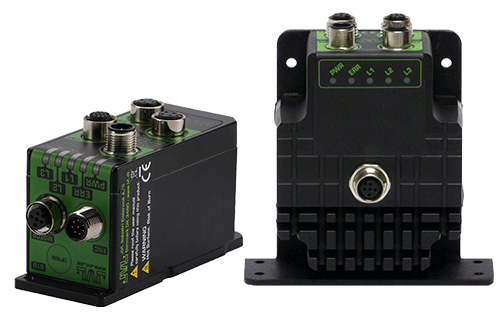

4. Stepper Motor Controllers

Order no.

Max. Current (A)

Protection (Optional)





Stepper Motor Controller SMC75 Max. 3 Amp

SMC75xxMx

3

Standard IP42

SMC75 with housing

SMC75xx

3

Open board

SMC75 with no housing

Stepper Motor Controller SMC66 Max. 6 Amp

SMC66xx

6

Standard IP42 (IP65)

SMC66 with housing

SMC66xx

6

Open board

SMC66 PLC

Stepper Motor Controller SMC85 Max. 9 Amp

SMC85xxMx

9

Standard IP42 (IP65)

SMC85 with housing

SMC85xx

9

Open board

SMC85 PLC

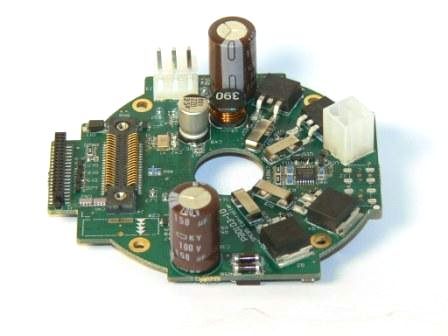

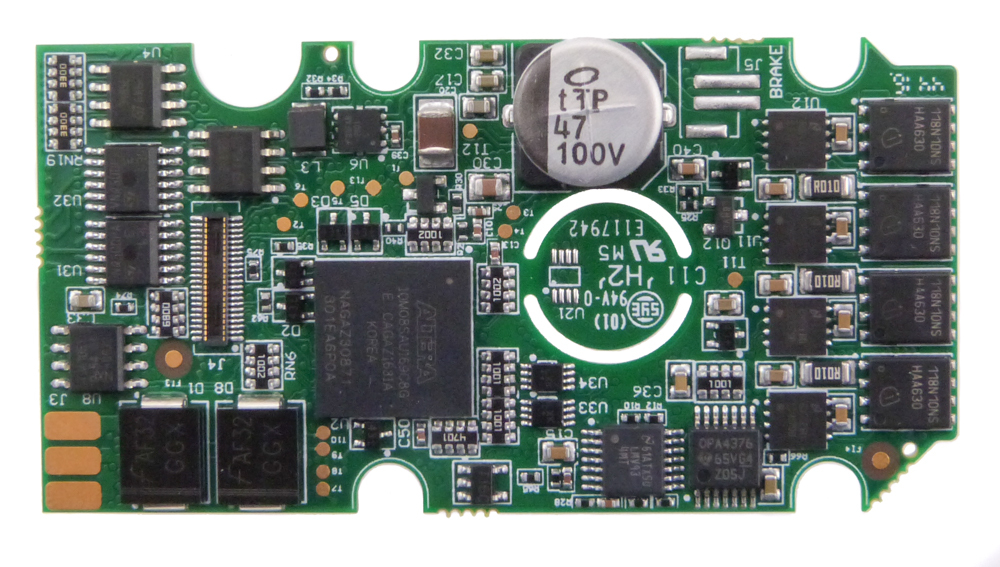

SMC66 without Housing

Stepper motor controller 0-6Amp RMS, PLC build in with 8IOA and RS422.

12-80VDC. Dual supply. Optional Profinet, EtherCAT, EthernetIP, Powerlink,

MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI, CANopen, magnetic encoder chip.

Ultra precise speed with 0,01RPM resolution.

Pulse/direction in and output with gearing.

SMC66 with Housing

Stepper motor controller in Housing 0-6Amp RMS, PLC build in with 8IOA and

RS422. 12-80VDC. Dual supply. Optional Profinet, EtherCAT, EthernetIP,

Powerlink, MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI, CANopen, magnetic

encoder chip.

Ultra precise speed with 0,01RPM resolution.

Pulse/direction in and output with gearing.

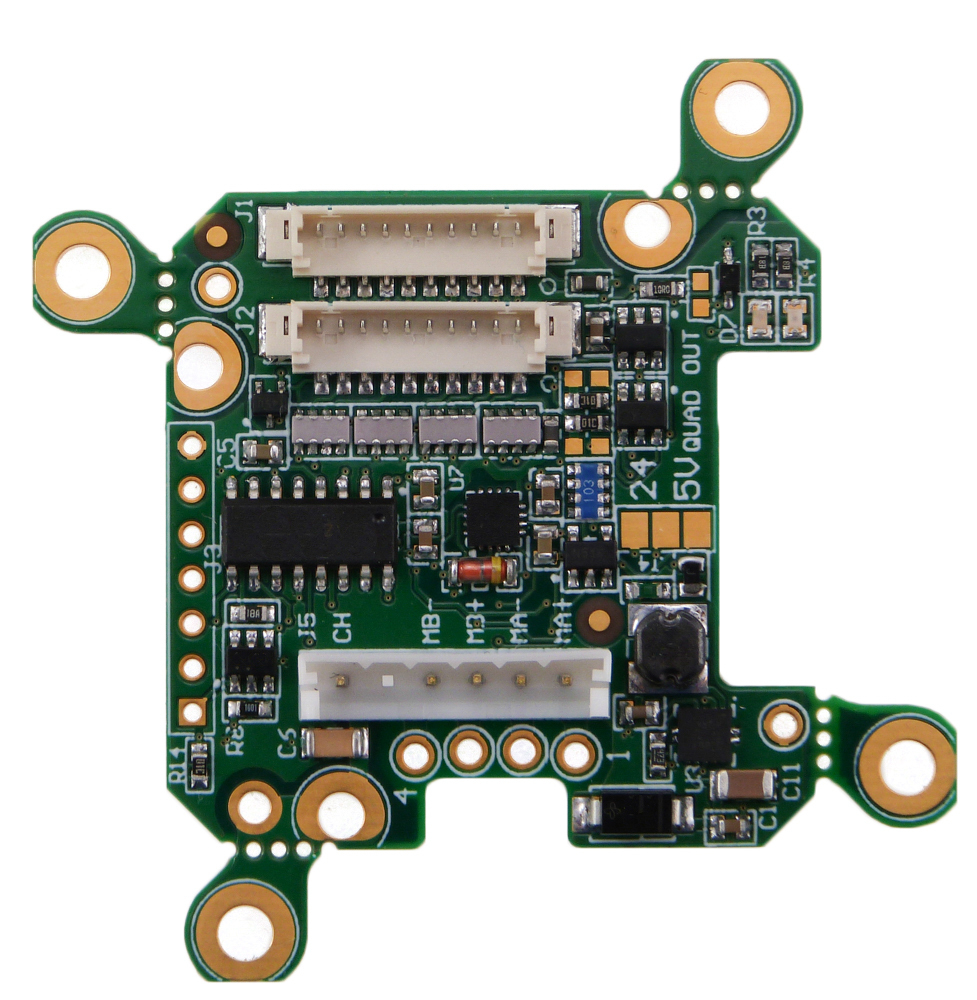

SMC75 without Housing

Stepper motor controller PCB 0-3Amp RMS, PLC build in with 8IOA and RS422.

12-50VDC. Dual supply. Optional SSI, CANopen, magnetic encoder chip.

Pulse/direction in and output.

Can be mounted on NEMA23 motors.

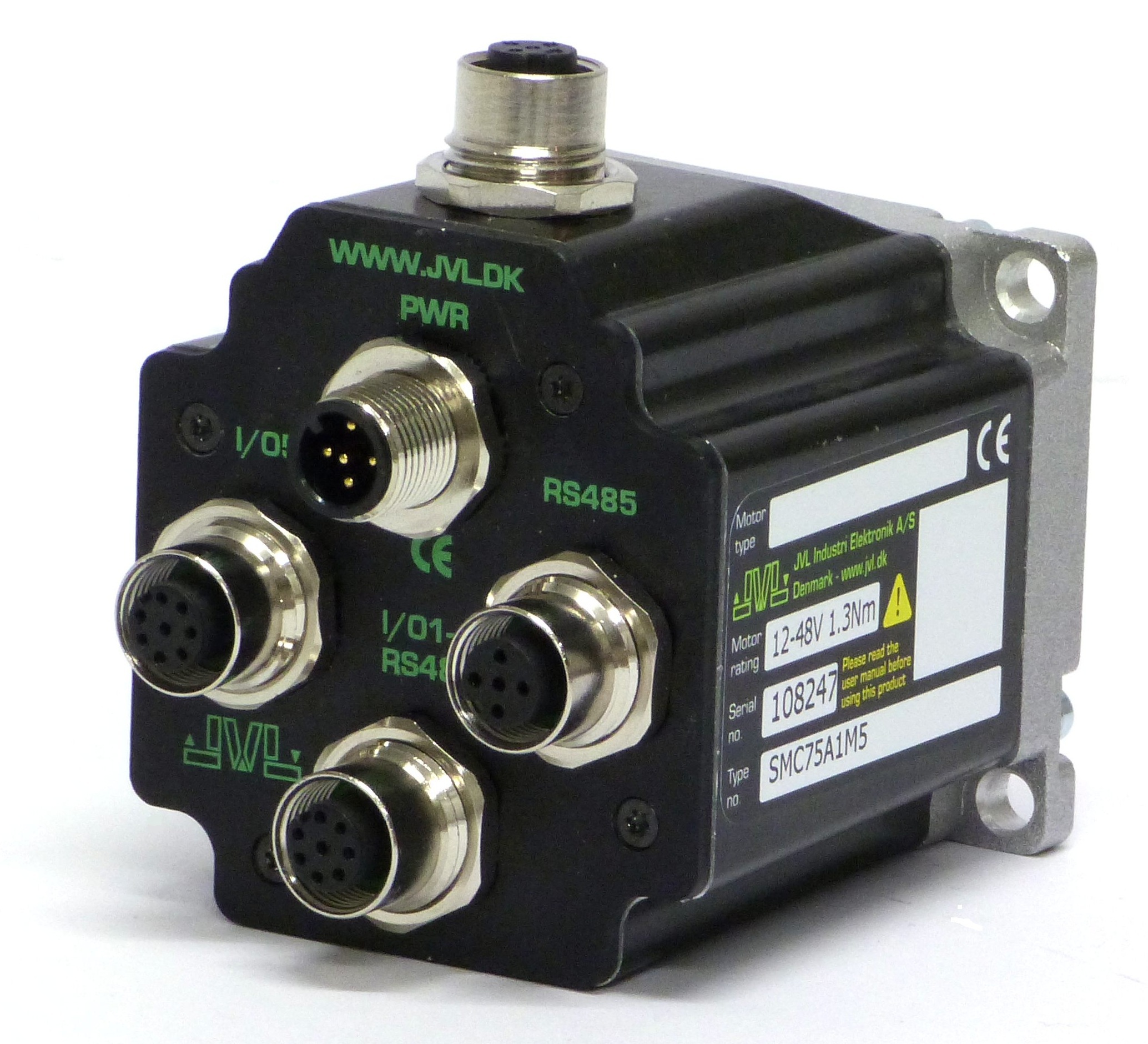

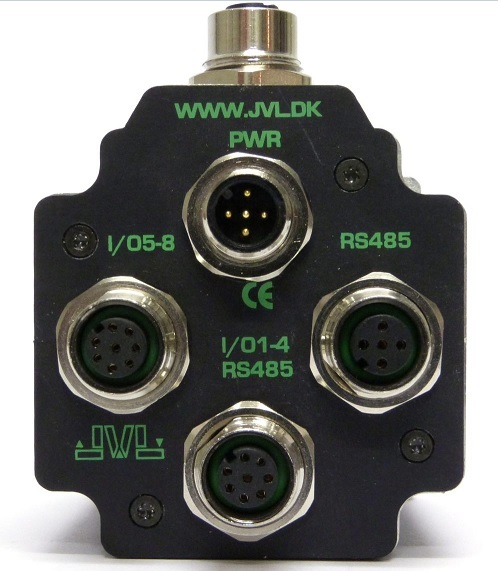

SMC75 with Housing

Stepper motor controller in Housing 0-3Amp RMS, PLC build in with 8IOA and

RS422. 12-50VDC. Dual supply. Optional SSI, CANopen, magnetic encoder chip.

2 to 4 pcs M12 connectors. IP55

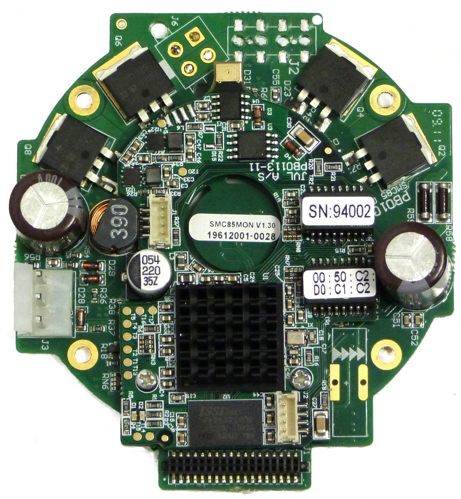

SMC85 without Housing

Stepper motor controller 0-9Amp RMS, PLC build in with 8IOA and RS422.

12-80VDC. Dual supply. Optional Profinet, EtherCAT, EthernetIP, Powerlink,

MOSBUS TCP, Bluetooth,  WLAN, Zigbii, SSI, CANopen, magnetic encoder chip.

Ultra precise speed with 0,01RPM resolution. Pulse/direction in and output

withgearing.

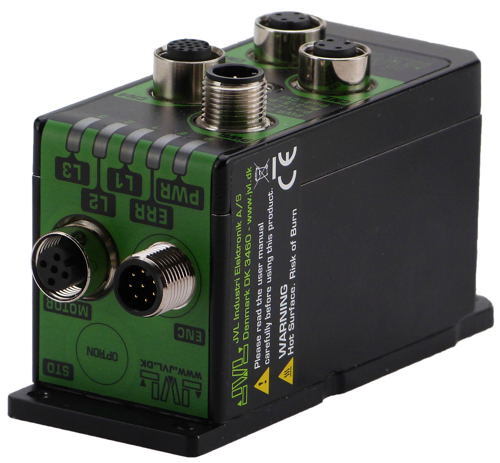

SMC85 with Housing

Stepper motor controller in Housing. 0-9Amp RMS, PLC build in with 8IOA and

RS422. 12-80VDC. Dual supply. Optional Profinet, EtherCAT, EthernetIP,

Powerlink, MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI, CANopen, magnetic

Encoder chip. Ultra precise speed with 0,01RPM resolution. Pulse/direction in

and output with gearing. 4 pcs M12 connectors. IP65Can be mounted on NEMA

34 or NEMA43 motors.

PA0260 - Incremental and absolute multi turn rotary magnet encoder PCB. ABZ,

Sin/Cos, SSI and BISS-C interface.

General purpose encoder PCB that can be mounted on all kind of stepper or

servomotor. Incremental or absolute multiturn encoder with incremental ABZ

signals or SSI or BISS interface. Resolution from 128 to 65536 cnt/rev. Can be

used together with JVL steppermotor controller SMC66 or SMC85 in closed-loop

operation.

返回



5. Cables

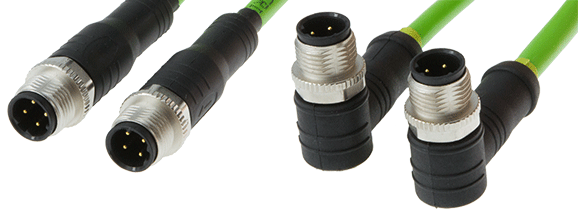

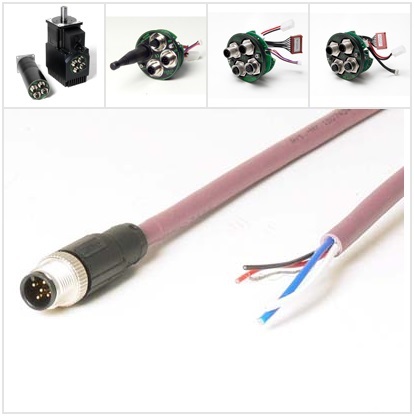

M12 Connection Cables

M12 connection cables for MAC Motor Expansion Modules and the QuickStep Motors

In order to ease installation of the MAC and QuickStep motors with M12 connectors,

JVL has developed a series of ready-made cables and adaptors etc. In the table in the

data sheet we have listed all items available and indicated which cables that should be

used with which expansion module.

In the last columns of the table in the datasheet cables for the QuickStep motors are given.

All the cables and other items for easy installation can normally be delivered from stock.

Special length´s of cables can be made to order.

All the M12 connectors fulfil IP67 requirements.

If desired you can make most of your own flexible or robot cables by means of 5- and

8-pin male and female connectors also available.

返回







MAC 整合型伺服馬達,從464,500W (0.1114.3Nm)



型號

輸出

功率

(W)

輸入

電壓

輸出扭矩

額定(峰值)

(Nm)

譯碼器

解析度

(cpr)

最大

轉速

(rpm)

通訊控制

防護

等級

標準

(可選)

產品

圖片

MAC050-A1

MAC095-A1

MAC140-A1

MAC141-A1

46

92

134

134

12-48Vdc

0.11(0.32)

0.22(0.62)

0.32(0.90)

0.48(1.59)

4,096

4,000

4,000

4,000

2,700

IP42

MAC140-A3

MAC141-A3

134

134

12-48Vdc

0.32(0.90)

0.48(1.59)

4,096

4,000

2,700

IP67

MAC100-A3

MAC101-A3

100

12-48Vdc

0.32(0.90)

0.48(1.59)

4,096

4,000

2,700

IP67

MAC400-Dx

MAC402-Dx

400

90-240Vac

12-48Vdc

1.28(3.80)

8,192

3,000

IP55

(IP65)

MAC800-Dx

750

90-240Vac

2.38(6.80)

8,000

3,000

IP55

(IP67)

MAC1200-Dx

1,140

90-240Vac

3.8(11.4)

8,000

3,000

IP55

(IP66)


MAC1500-Dx

MAC1500-Gx

1,500

3x400 Vac

5.0(14.3)

5.0(12.5)

8,192

3,000

IP55

(IP67)

MAC3000-Dx

MAC3000-Gx

3,000

3x400 Vac

9.55(28.7)

10.0(37.5)

8,192

3,000

IP55

(IP67)

MAC4500-Gx

4,500

3x400 Vac

14.3/52

8,192

3,000

IP55

(IP67)

註: 1. 防護等級:IP42:一般、IP55:低壓水柱、IP66:高壓水柱、IP67:浸水1m/30分鐘

                  2. 單/多圈絕對式Encoder (SSI) 可選擇





JVL 整合型伺服/步進馬達

MIS 整合型步進馬達,從NAME17NEMA43 (0.3625.0Nm)

型號

輸出

(W)

輸入

電壓

(Vdc)

輸出扭矩

保持(運轉)

(Nm)

電流(Arms)

24/48/72V

通訊控制

剎車

防護

等級

標準

(可選)

產品

圖片

MIS171Q/S

MIS173Q/S

MIS176Q/S

100

142

135

7-72

0.36(0.36)

0.56(0.56)

0.80(0.80)

2.9/2.0/1.3

3.3/3.2/2.7

2.8/3.0/3.2

V

V

外加

IP42

(IP65)

MIS231Q/S

MIS232Q/S

MIS234Q/S

MIS231R/T

MIS232R/T

177

221

212

198

316

7-72

0.97(0.97)

1.97(1.97)

3.08(3.08)

1.16(1.16)

2.53(2.53)

5.1/5.2/5.1

4.4/4.6/4.8

3.5/4.1/4.1

6.7/6.3/5.6

5.9/6.1/6.2

V

V

外加

IP42

(IP65)

MIS231A

MIS232A

MIS234A

12-48

1.3(1.1)

1.8(1.6)

3.0(2.9)

2.2/2.1/-

2.2/2.2/-

2.5/2.0/-

V

V

可選

IP42

(IP55)

MIS340

MIS341

MIS342

MIS343

260

288

367

296

7-72

3.0(3.0)

6.1(6.1)

9.0(7.5)

12.0(10.0)

5.0/5.2/5.4

5.6/5.3/5.9

6.0/5.4/6.1

6.3/5.7/6.6

V

V

可選

IP42

(IP65)

MIS430

MIS431

MIS432

240

323

245

7-72

10.0(10.0)

18.7(18.7)

25.0(25.0)

6.6

V

V

可選

IP42

(IP65)

註: 1. MIS17-MIS43 保護等級可選IP65 (IP42/65= 一般/防濺)

                  2. MIS23xA 微步分割可選 200/400/800/1000/1600 cpr,其他型號之微步分割為 409600 cpr

                  3. 閉迴路控制,增量式 Encoder(4096cpr) 或 單/多圈絕對式Encoder (SSI) 可選



MAC 擴充模組

All modules on this page are supported by MAC400-3000.



These first modules CAN NOT be used by the MAC050-141-AxAxxx-A009

because of the connectors between motor and module.

D-SUB

直接出線

M12接頭



MAC00-FP2-FP4

MAC00-FC4

MAC00-FD4

MAC00-FB4

MAC00-EW4

MAC00-FZ4

MAC00-R1-R3-R4

MAC00-B1-B2-B4

MAC00-FS1-FS4

MAC00-CS

MAC00-0x





MAC050 to -141-AxAxxx-A009 are ONLY supporting the Ethernet module - Ex4

even if MAC-P4, -P5, -B41, -B42 and -FC41 have the same connector.

2. generation connector

MAC00-P4-P5

MAC00-B41-B42

MAC-FC41

MAC00-EC4

MAC00-EL4

MAC00-EP4

MAC00-ES4

MAC00-EM4

MAC00-EI4
