Sejin 齒輪齒排 、XQ 諧和式減速機



精密線性齒排、滾輪

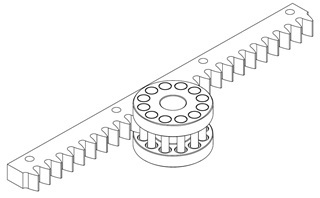

CRP Series

零背隙 (獨特的齒成形方式,可以實現零背隙,精度0.03mm)
整潔的外觀 (使用時不需要潤滑)
整數跨距 (便用電控調節)
多齒接觸 (傳輸推力大)
低摩擦係數 (滾輪滾動接觸)
低發塵 (千級無塵車間應用案例)
高速度 (6-12M/S也可實現,可替代直線電機)
低噪音  (速度在5M/S時,噪音值為78 d B)

應用案例:
廣泛應用於長行程直線傳輸產線,機器人地軌 (第七軸),行走機構,大跨度龍門機床,液晶面板產線,
智慧倉儲系統,老化產線,光伏產線,鋰電池產線,5G手機設備,噴繪列印,水刀設備等。




精密弧型齒排、滾輪

RPE Series



RPE系列是從CRP系列衍生的一款高精度轉檯產台
客制化 (可以根據客戶需求進行特殊定制)
高精度 (可以實現10arcmin級,可替代DD電機)
大中空尺寸 (可實現超大中空應用需求)
成本優勢 (根據實際使用,可做分段設計)

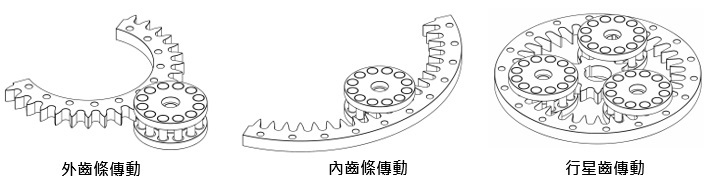

結構多樣 (可做整圈,角度,外齒,內齒)

應用案例:
廣泛應用于高精度轉檯需求,液晶面板檢測設備,
醫療設備,雷達,天線,觀測機械的驅動,大中空
旋轉平臺,航太設備,風洞設備等。

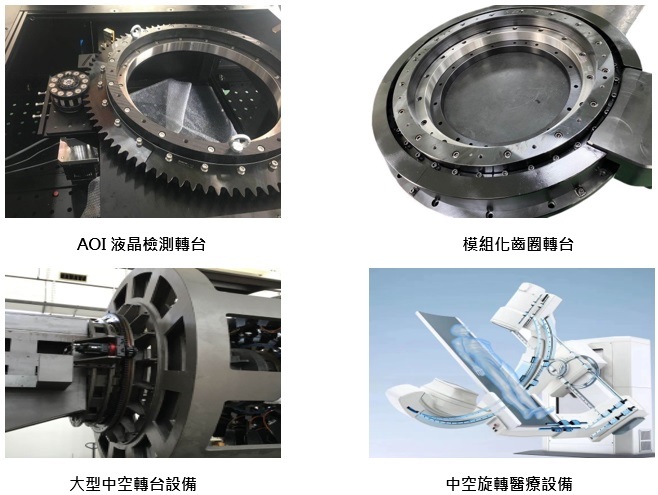

AOI液晶檢測轉台  模組化齒輪轉台  大型中空轉台設備  中空旋轉醫療設備





Sejin滾輪齒排+直驅(DDR)馬達:   應用案例影片


Sejin滾輪齒排高速高效能傳動元件 + Renishaw精密光學尺回授 + Copley高階運動驅動器 + Kollmorgen
KBM無框直驅(DDR)馬達, 可減少機構誤差, 提高定位精度, 實現高效能高精度的運動控制解決方案.

特點:
1. Sejin滾輪齒排: 預壓消背隙設計
2. 直驅(DDR)馬達傳動滾輪, 避免減速機背隙
3. Sejin滾輪可達高速移動 6 米/ sec
4. 補償修正後,重複精度1um (根據光學尺回授)

應用: 長行程, 大推力, 高速度, 高精度 之運動控制解決方案
                    (一般滾輪齒排重複精度大約20um, 本方案重複精度可達1um)



      SEJINIGB 齒輪齒排PDF下載

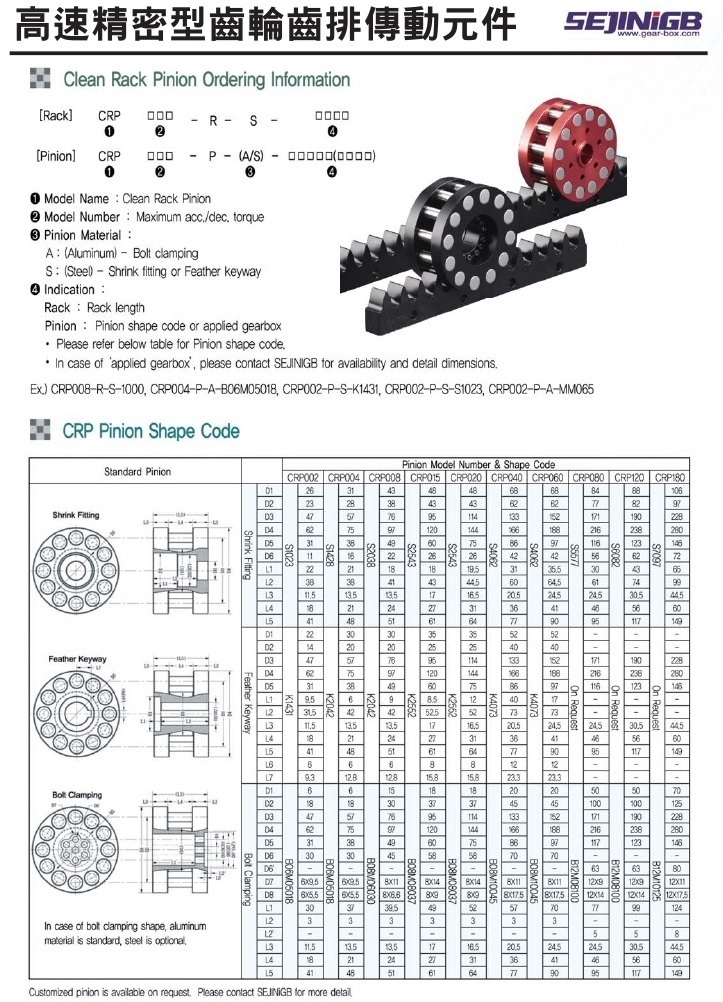

     高速精密型齒輪齒排傳動元件



    SEJINIGB 齒輪齒排PDF下載

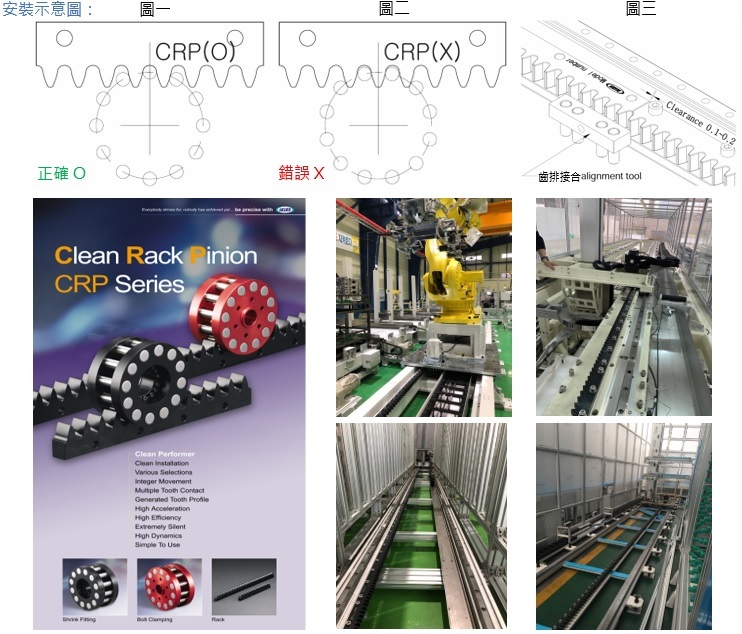

 Sejin齒條齒排CRP標準安裝SOP

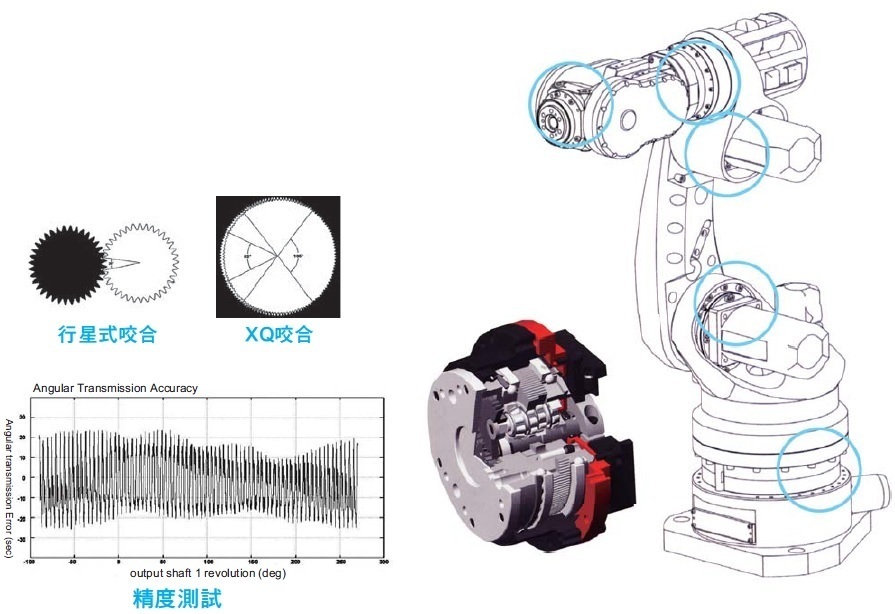

 XQ諧和式減速機



・絕佳的精度弧≦1弧分減速比範圍19:1~883:1體積小,重量輕

・高剛性IP67保護等級容易安裝允許-30℃環境客製規格

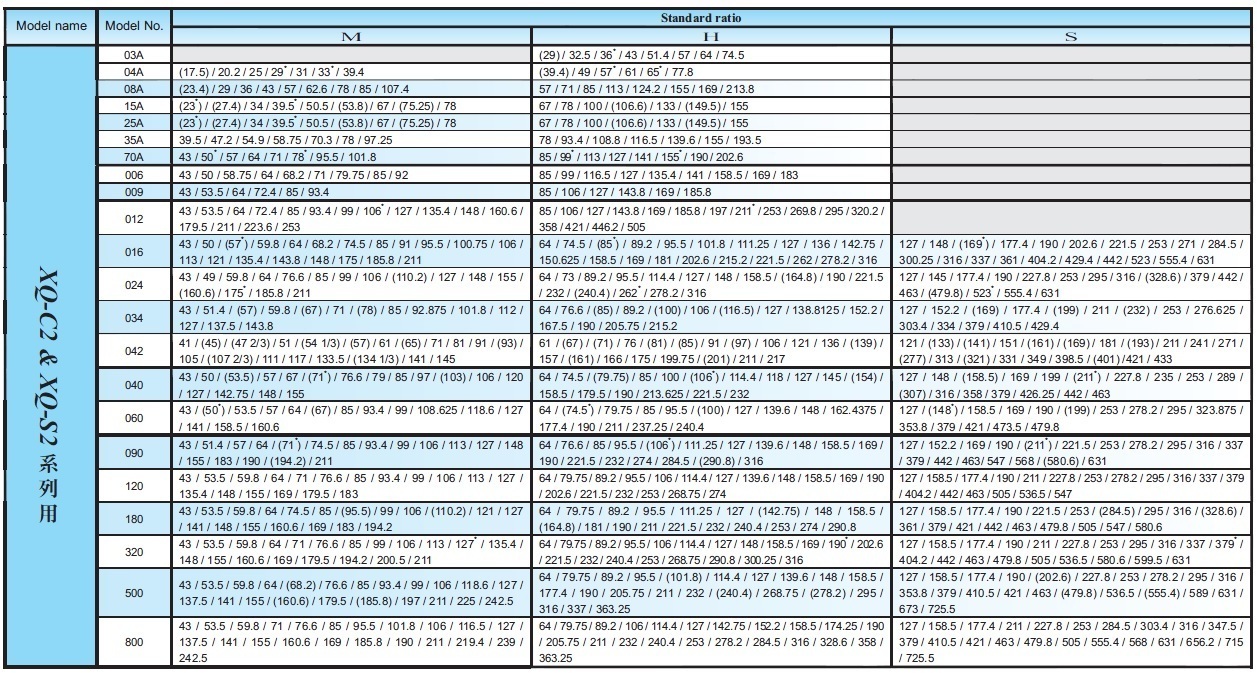

( ) is optional ratio.

In case of * ratio, GMF considering input speed less than 2000rpm.

If other ratios than the standard ratios on specification are required, consult SEJIN-iGB for further information.

In case of high ratio application, limitation has to be imposed to the motor torque, unless it satisfies following condition, i.e.

 {Maximum torque of motor Permitted momentary peak torque of XQ}.

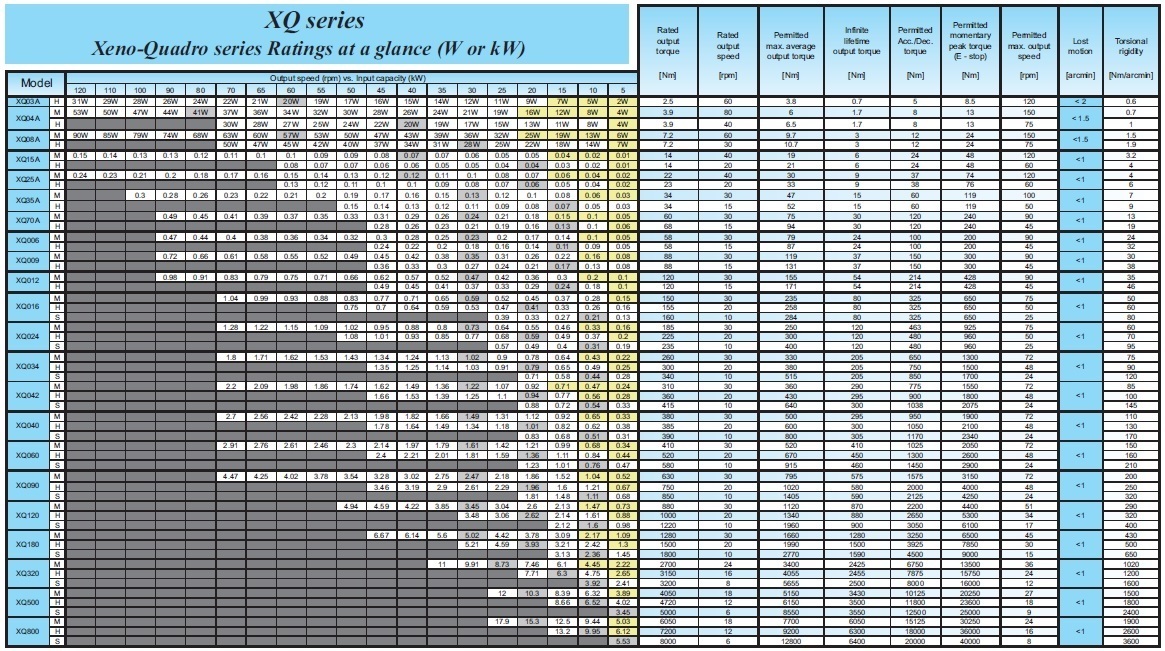

Input capacities (W, kW) from the above list include efficiency (approx.80%) of transmission. Please be cautious when it exceeds the values.

Rated output torque and rated output speed is set for life time as 6000 hours. (Refer XQ quick selection formula or lifetime calculation formula.

In case of aluminum XQ , stiffness and rigidity may reduce 40% down because of material density.

Even though output torque raised by life- time calculation, due to the fact, output speed is low, it should not exceed max. average output torque.

Xeno-Quadro is designed mainly as intermittent periodic duty. For continuous operation duty application, those series should not exceed 60% (max. 70%) of rated output torque

 and maximum output speed on the specifications or Xeno-Quadro surface temperature should be settling within max. 80°C.





原廠網址: http://www.gear-box.com/eng/
